(58.110.02) - KNIFE ASSY, RH, 3-IN COARSE, 30 FOOT HEADER

Запчасти Case IH 3162 (58.110.02) - KNIFE ASSY, RH, 3-IN COARSE, 30 FOOT HEADER (58) - ATTACHMENTS/HEADERS

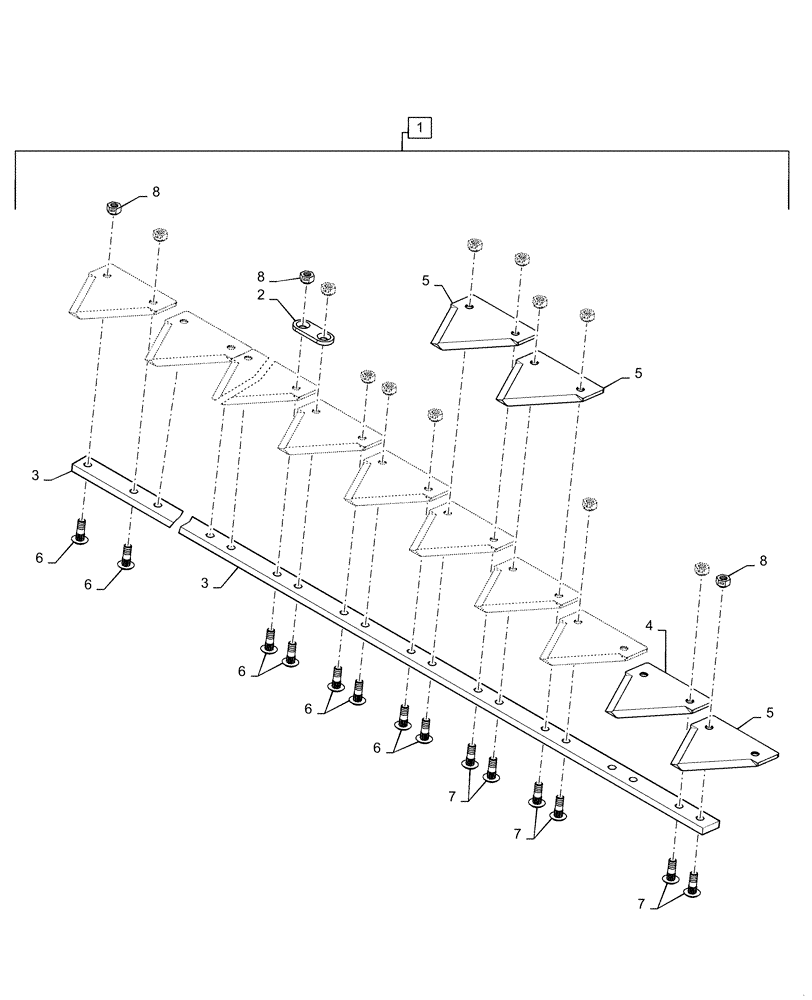

Схема запчастей Case IH 3162 - (58.110.02) - KNIFE ASSY, RH, 3-IN COARSE, 30 FOOT HEADER (58) - ATTACHMENTS/HEADERS
8
5
5
3
7
3
6
7
5
8
6
4
7
6
6
8
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84406745

KNIFE ASSY

RH, Soybean, Center Knife Drive, Incl 2 - 8

1шт.

2

321848A1

KNIFE CLIP

Reinforcing - 3 in Knives

9шт.

3

NSS

NOT SOLD SEPARAT

RH

1шт.

4

87728905

KNIFE SECTION

Section, OS

58шт.

5

87470186

KNIFE SECTION

OS

3шт.

6

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

107шт.

7

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

8шт.

8

84429102

LOCK NUT

115шт.
