(58.110.01) - KNIFE ASSY, LH, 3-IN COARSE, 35 FOOT HEADER

Запчасти Case IH 3162 (58.110.01) - KNIFE ASSY, LH, 3-IN COARSE, 35 FOOT HEADER (58) - ATTACHMENTS/HEADERS

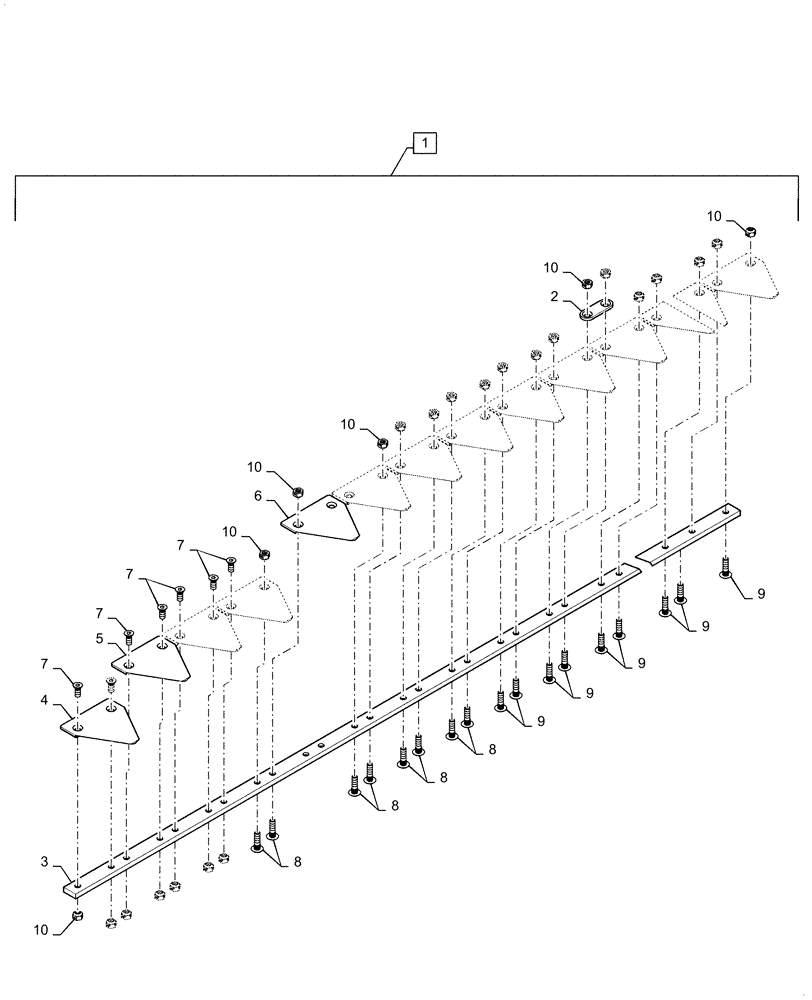

Схема запчастей Case IH 3162 - (58.110.01) - KNIFE ASSY, LH, 3-IN COARSE, 35 FOOT HEADER (58) - ATTACHMENTS/HEADERS
3
10
8
4
5
2
10
9
8
10
9
7
8
8
9
7
6
7
10
7
1
10
10
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84131146

KNIFE ASSY

Soybean, Center Knife Drive, Incl 2 - 10

1шт.

2

321848A1

KNIFE CLIP

Reinforcing - 3 in Knives

12шт.

3

NSS

NOT SOLD SEPARAT

Knife Back, LH

1шт.

4

87470186

KNIFE SECTION

OS

1шт.

5

47431717

KNIFE SECTION

OS

3шт.

6

87728905

KNIFE SECTION

Section, OS

68шт.

7

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

Overlap Knife Section

7шт.

8

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

8шт.

9

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

127шт.

10

84429102

LOCK NUT

142шт.
