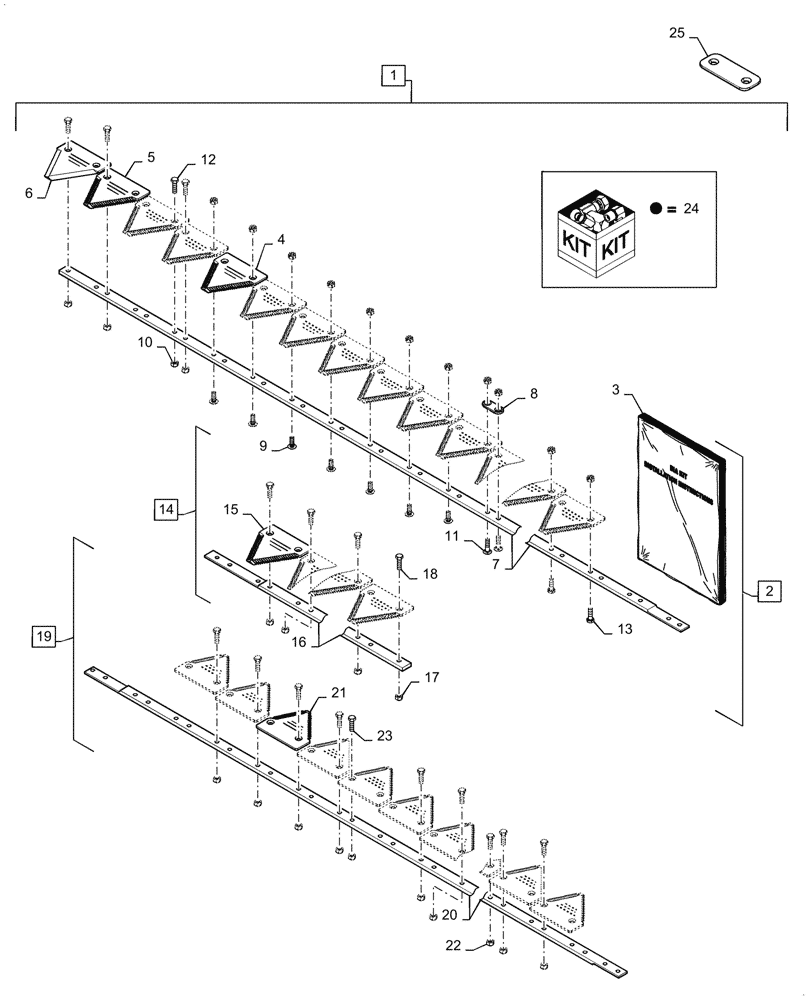

Запчасти Case IH 3162 (58.110.00[02]) - LH, SEGMENTED KNIFE ASSY, 30, 35, 40, 45FT, COARSE (58) - ATTACHMENTS/HEADERS

1

47476496

KNIFE ASSY

LH Coarse, Segmented, 30 FT, Incl 2 - 24

1шт.

1

47476500

KNIFE ASSY

LH Coarse, Segmented, 35 FT, Incl 2 - 24

1шт.

1

47476504

KNIFE ASSY

LH Coarse, Segmented, 40 FT, Incl 2 - 24

1шт.

1

47476508

KNIFE ASSY

LH Coarse, Segmented, 45 FT, Incl 2 - 24

1шт.

2

47476450

KNIFE SECTION

LH Coarse, Segmented Center, Incl 4 - 13

1шт.

3

47592787

INSTRUCTION

Knife Head Install

1шт.

4

87728905

KNIFE SECTION

OS, BT, STD BH

32шт.

5

47431717

KNIFE SECTION

OS, BT, CST BH

3шт.

6

87470186

KNIFE SECTION

OS, BT, CSB BH

1шт.

7

NSS

NOT SOLD SEPARAT

Knifeback, Incl In Ref 2

1шт.

8

321848A1

KNIFE CLIP

Strap, Reinforcing - 3" Knives

17шт.

9

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

8шт.

10

84429102

LOCK NUT

73шт.

11

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

34шт.

12

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

7шт.

13

86563537

BOLT

14шт.

14

47476472

KNIFE SECTION

LH Tail, Segmented Coarse, 30 FT, Incl 15 - 18

1шт.

14

47476476

KNIFE SECTION

LH Tail, Segmented Coarse, 35 FT, Incl 15 - 18

1шт.

14

47476480

KNIFE SECTION

LH Tail, Segmented Coarse, 40 FT, Incl 15 - 18

1шт.

14

47476484

KNIFE SECTION

LH Tail, Segmented Coarse, 45 FT, Incl 15 - 18

1шт.

15

87728905

KNIFE SECTION

30 FT

26шт.

15

87728905

KNIFE SECTION

35 FT

3шт.

15

87728905

KNIFE SECTION

40 FT

13шт.

15

87728905

KNIFE SECTION

45 FT

23шт.

16

NSS

NOT SOLD SEPARAT

Knifeback, Incl In Ref 14

1шт.

17

84429102

LOCK NUT

30 FT

51шт.

17

84429102

LOCK NUT

35 FT

5шт.

17

84429102

LOCK NUT

40 FT

25шт.

17

84429102

LOCK NUT

45 FT

45шт.

18

86563537

BOLT

30 FT

51шт.

18

86563537

BOLT

35 FT

5шт.

18

86563537

BOLT

40 FT

25шт.

18

86563537

BOLT

45 FT

45шт.

19

84585645

KNIFE

Center Coarse, Segmented Assy, Incl 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Knifeback, Incl In Ref 19

1шт.

21

87728905

KNIFE SECTION

Section, 45 FT

33шт.

22

84429102

LOCK NUT

58шт.

23

86563537

BOLT

58шт.

24

84585647

SERVICE KIT

Knife Assy

1шт.

25

47415343

PLATE

Knife

1шт.
