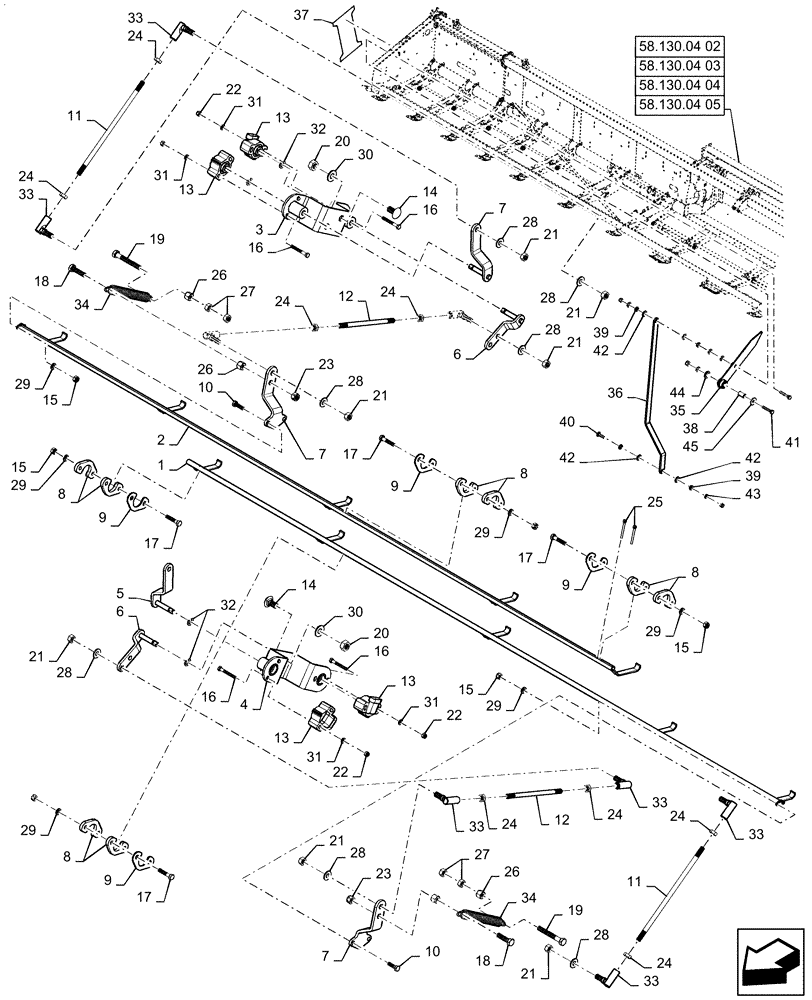

Запчасти Case IH 3162 (58.105.01) - CONTROL ASSEMBLY, HEADER HEIGHT (58) - ATTACHMENTS/HEADERS

1

84556765

TUBE

LH, 30FT Header

1шт.

1

84313656

TUBE

LH, 35FT Header, Serial Range: -YDH033000

1шт.

1

84556770

TUBE

LH, 35FT Header

1шт.

1

84584118

TUBE

LH, 40FT Header

1шт.

1

84584123

TUBE

LH, 45FT Header

1шт.

2

84556762

TUBE

RH, 30FT Header

1шт.

2

84313654

TUBE

RH, 35FT Header, Serial Range: -YDH033000

1шт.

2

84556768

TUBE

RH, 35FT Header

1шт.

2

84584116

TUBE

RH, 40FT Header

1шт.

2

84584121

TUBE

RH, 45FT Header

1шт.

3

47548603

BRACKET

Assy

1шт.

4

47548689

BRACKET

Assy

1шт.

5

47548609

ARM

Support

2шт.

6

84556746

ARM

Support

2шт.

7

47357259

ARM

Adjustment

2шт.

8

84394120

SUPPORT

Shaft, 30FT Header

20шт.

8

84394120

SUPPORT

Shaft, 35FT Header

24шт.

8

84394120

SUPPORT

Shaft, 40FT Header

28шт.

8

84394120

SUPPORT

Shaft, 45FT Header

32шт.

9

84394209

SUPPORT

Flange, 30FT Header

10шт.

9

84394209

SUPPORT

Flange, 35FT Header

12шт.

9

84394209

SUPPORT

Flange, 40FT Header

14шт.

9

84394209

SUPPORT

Flange, 45FT Header

16шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

11

47548664

ROD

Adjustment

2шт.

12

84556741

ADJUSTMENT ROD

Upper

2шт.

13

86616339

SENSOR,CCW

AHHC Sensor

4шт.

14

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

15

353308

NUT,M6 x 1.0, Cl 8

30FT Header

24шт.

15

353308

NUT,M6 x 1.0, Cl 8

35FT Header

28шт.

15

353308

NUT,M6 x 1.0, Cl 8

40FT Header

36шт.

15

353308

NUT,M6 x 1.0, Cl 8

45FT Header

40шт.

16

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

8шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

30FT Header

20шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

35FT Header

24шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

40FT Header

28шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

45FT Header

32шт.

18

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

19

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

20

100016

NUT,M10 x 1.5, Cl 8

4шт.

21

86629539

NUT,5/16"-24, G5

8шт.

22

43440

LOCK NUT,M5 x .8, Cl 8

8шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

24

87307

JAM NUT,Jam, 5/16"-24, G2

8шт.

25

130005

COTTER PIN,M3.2 x 32

4шт.

26

412250

NUT,M8 x 1.25, Cl 8

4шт.

27

9706690

NUT,M8 x 1.25, Cl 8

4шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

29

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

30FT Header

24шт.

29

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

35FT Header

28шт.

29

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

40FT Header

36шт.

29

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

45FT Header

40шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

31

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

32

100-3431

SNAP RING,#31, Ext, E-Type

4шт.

33

86548493

BALL,5/16" -24 x 1-2/5"

End

8шт.

34

87047744

SPRING

Auto Coat

2шт.

35

47464384

INDICATOR

Height

2шт.

36

47412097

ARM

Indicator

2шт.

37

47424985

DECAL

Cutterbar Height

2шт.

38

47461813

SPACER

9mm x 15.875mm x 25mm

2шт.

39

133246

BUSHING,8mm ID x 17.53mm OD x 7.26mm L

Indicator

8шт.

40

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

41

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

4шт.

42

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

Special

8шт.

43

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

44

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

2шт.

45

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

2шт.
