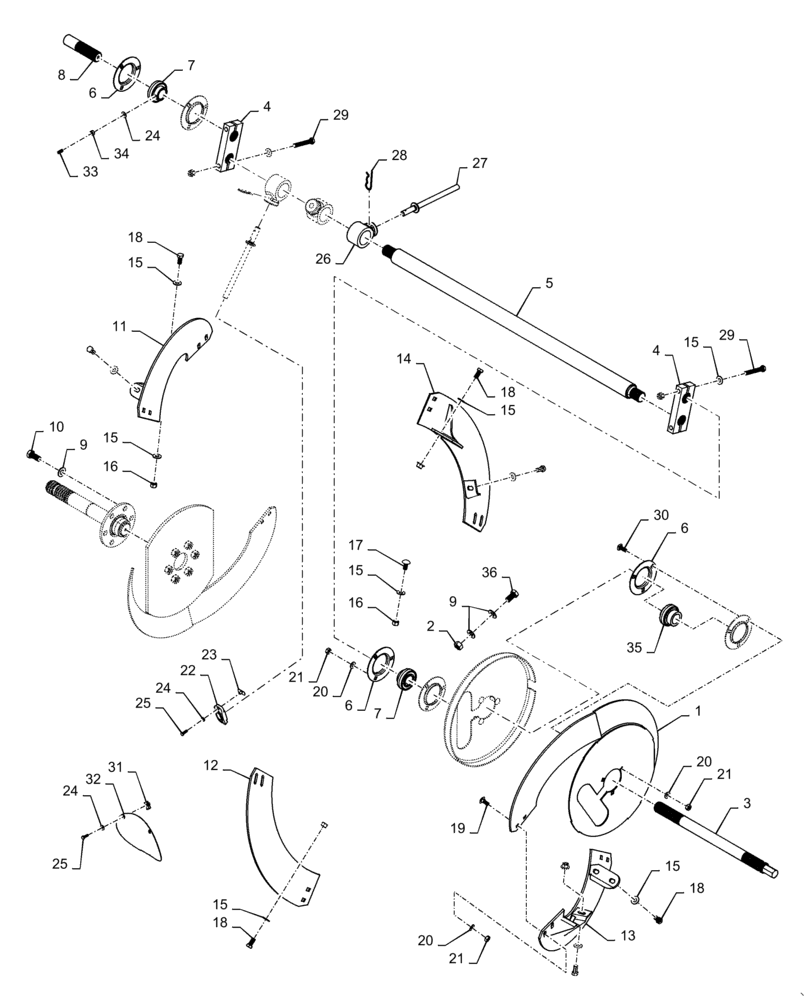

Запчасти Case IH 3162 (58.100.01[03]) - AUGER ASSY (58) - ATTACHMENTS/HEADERS

1

47657755

AUGER

1шт.

2

100020

NUT,M16 x 2.0, Cl 8

2шт.

3

84297335

SHAFT

1шт.

4

86620720

CRANKED LINK

2шт.

5

84261948

SHAFT

1шт.

6

36403

BEARING HOUSING

6шт.

7

87323339

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

8

87392469

SHAFT

LH

1шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

10шт.

10

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

6шт.

11

84224159

AUGER FLIGHT

LH

1шт.

12

84263900

AUGER FLIGHT

LH

1шт.

13

84224162

AUGER FLIGHT

RH

1шт.

14

84263896

AUGER FLIGHT

RH

1шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

44шт.

16

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

26шт.

17

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

12шт.

18

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

14шт.

19

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

21

100016

NUT,M10 x 1.5, Cl 8

17шт.

22

84287636

GUIDE

20шт.

23

84315756

NUT

TEE

40шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

50шт.

25

120100

BOLT,M6 x 20mm, Cl 8.8

48шт.

26

84362468

JOINT

20шт.

27

84194057

FINGER,Assembly, Grain Header

20шт.

28

740591

SPRING,M10 x 67

20шт.

29

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

30

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

31

86014250

SPRING NUT,M6 x 1.0

8шт.

32

87017844

COVER

Access

4шт.

33

84548954

SET SCREW,M6 x 0.75 x 16mm

2шт.

34

84268307

NUT,M6 x 0.75, 8 ZND

2шт.

35

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

1шт.

36

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.
