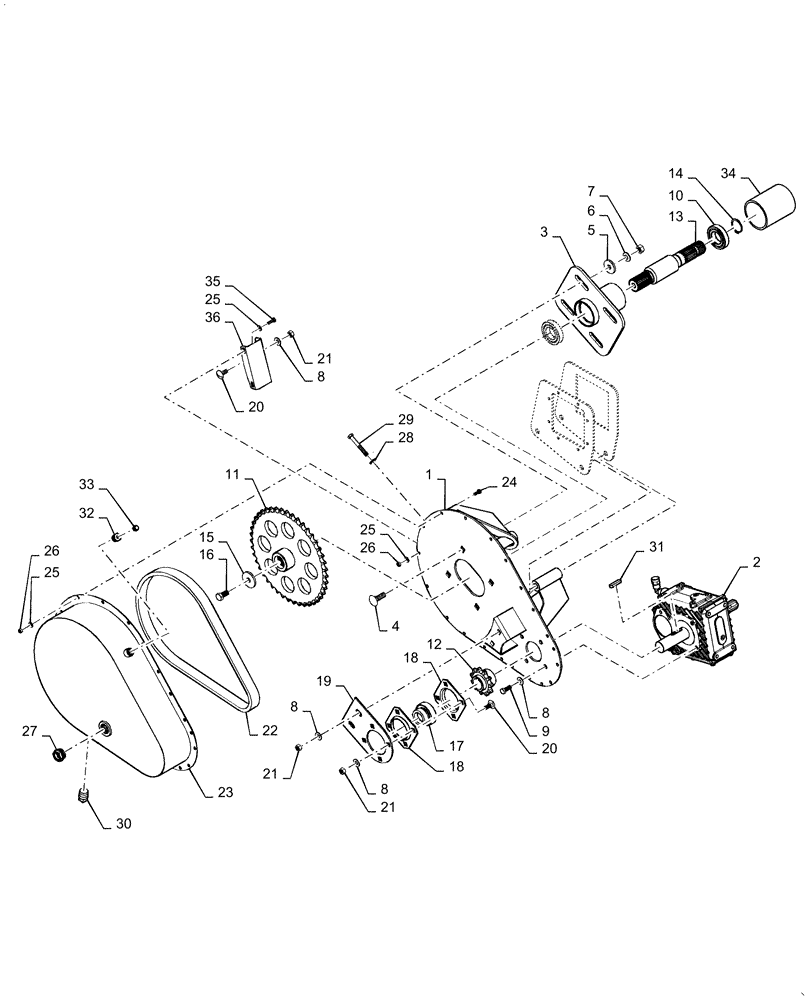

Запчасти Case IH 3162 (58.100.01[02]) - DRAPER, DRIVE ASSY (58) - ATTACHMENTS/HEADERS

1

84211252

PLATE

Mounting

1шт.

2

84234632

GEARBOX

1шт.

3

84211249

PLATE

Draper Drive

1шт.

4

86512430

CARRIAGE BOLT,Reg Sq Nk, M16 x 2 x 50mm, Cl 8.8

4шт.

5

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

4шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

7

100020

NUT,M16 x 2.0, Cl 8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

11шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

10

353125

BALL BEARING,45mm ID x 85mm OD x 19mm W

2шт.

11

84266747

SPROCKET,38T

38T High RPM Auger

1шт.

11

84176718

SPROCKET ASSY.,43T, RC80

43T RC80

1шт.

12

84234636

SPROCKET

Assy, 11T, RC80

1шт.

13

84251853

SHAFT

1шт.

14

5135061

CIRCLIP,M45, Ext

1шт.

15

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

1шт.

16

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

1шт.

17

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

1шт.

18

84314678

FLANGE

2шт.

19

84553739

BRACKET

1шт.

20

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

21

9706685

NUT,M12 x 1.75, Cl 8

7шт.

22

84499861

CHAIN (AG),RC80, 54 Links x 25.4mm = 1371.6mm

54 Pitch Hig RPM Auger

1шт.

22

84206842

CHAIN,80-1, 56 Links x 25.4mm = 1422.4mm

56 Pitch

1шт.

23

84211253

COVER ASSY

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

19шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

23шт.

26

9706690

NUT,M8 x 1.25, Cl 8

21шт.

27

85801249

LEVEL GAUGE

1шт.

28

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

1шт.

29

72182307

BOLT,Hex, M16 x 120, 8.8, Full Thd

1шт.

30

84296

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

2шт.

31

170056

KEY,12mm W x 50mm OAL

1шт.

32

87520047

REDUCER FITTING

1шт.

33

46566

BREATHER

1шт.

34

84551936

HYDRAULIC HOSE,95.3mm ID x 127mm L, SAE 30R2

1шт.

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

36

47387836

COVER

1шт.
