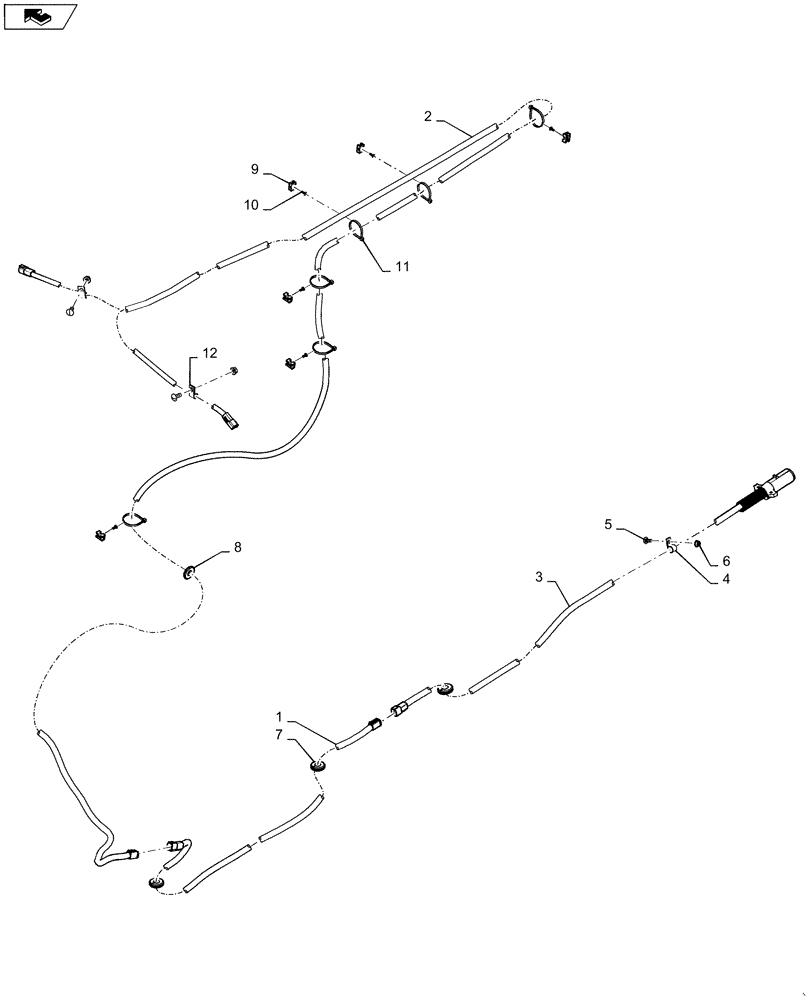

Запчасти Case IH 3162 (55.404.02) - HARNESS, TRANSPORT LIGHTS (55) - ELECTRICAL SYSTEMS

1

84494109

WIRE HARNESS

Header Warning Hitch Extension, 30, 35, 40 Foot Header

1шт.

1

84494110

WIRE HARNESS

Header Warning Hitch Extension, 45 Foot Header

1шт.

2

84494092

WIRE HARNESS

Header Warning Lights, 30, 35 Foot Header

1шт.

2

84494094

WIRE HARNESS

Header Warning Lights, 40, 45 Foot Header

1шт.

3

84494107

WIRE HARNESS

Header Warning Hitch, 30, 35 Foot Header

1шт.

3

84494108

WIRE HARNESS

Header Warning Hitch, 40, 45 Foot Header

1шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

30, 35 Foot Header

2шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

40 Foot Header

3шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

45 Foot Header

4шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

7

86637780

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

3шт.

8

87035867

GROMMET,5/8" ID x 1 1/4" Groove Dia

1шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie, 30 Foot Header

7шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie, 35, 40, 45 Foot Header

6шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

30 Foot Header

7шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

35, 40, 45 Foot Header

6шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP 30 Foot Header

7шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP 35, 40, 45 Foot Header

8шт.

12

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

2шт.
