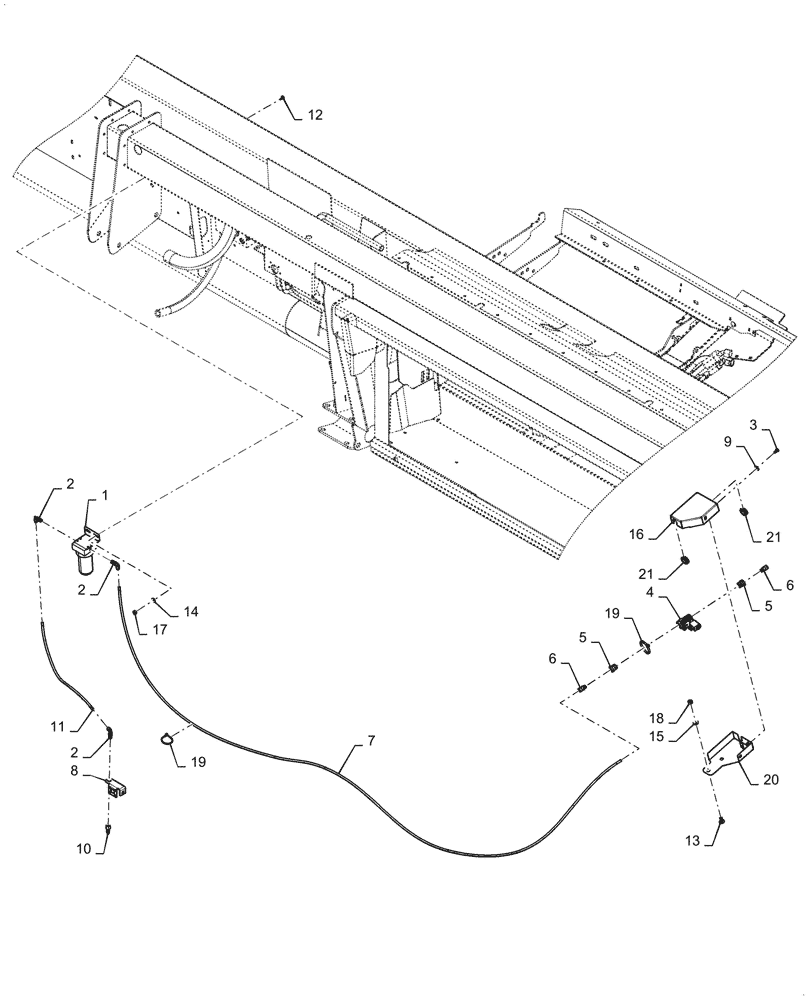

Запчасти Case IH 3162 (55.350.01) - AIR CONTROL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

84333117

FILTER

Water Seperator

1шт.

2

84448809

FITTING

90, Air Compressor

3шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

4

84022290

HYDRAULIC VALVE

Check

1шт.

5

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

2шт.

6

84448845

HYD CONNECTOR

Fitting, Air Compressor

2шт.

7

84351061

TUBE

Hose, Nylon Air

1шт.

8

47867100

BRACKET

Tube Connector

1шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

10

84172050

HYD CONNECTOR

Quick Coupling, 1/4" Plug

1шт.

11

47863515

HOSE

Air, Nylon

1шт.

12

120031

CARRIAGE BOLT

2шт.

13

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

16

47944911

COVER

Top Valve

1шт.

17

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

18

100016

NUT,M10 x 1.5, Cl 8

2шт.

19

86566989

CABLE TIE,208mm L

6шт.

20

47944908

COVER

Bottom Valve

1шт.

21

758435

GROMMET,17mm ID x 34mm OD x 12mm Thk

2шт.
