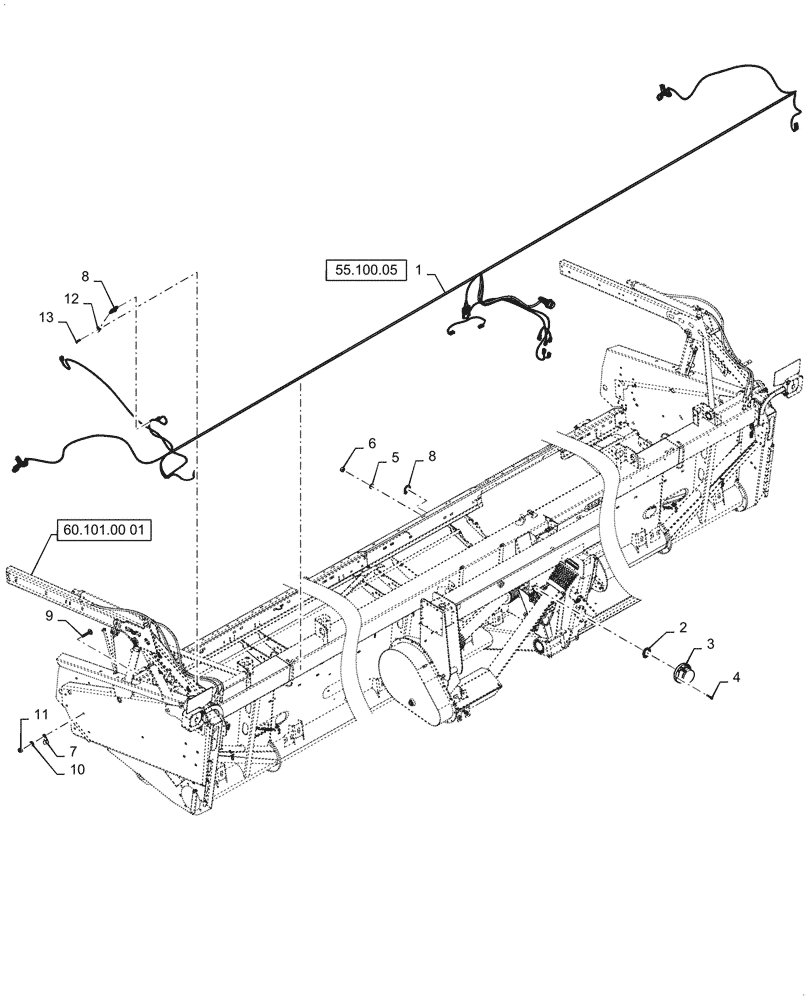

Запчасти Case IH 3162 (55.100.04) - RIGID DRAPER, ELECTRICAL ASSY (55) - ELECTRICAL SYSTEMS

1

47841751

WIRE HARNESS

Assy

1шт.

2

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

3

86606228

COVER

1шт.

4

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

5

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

6

86508813

NUT,M5, Cl 8

4шт.

7

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

4шт.

8

86566989

CABLE TIE,208mm L

22шт.

9

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

4шт.

12

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

13

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.
