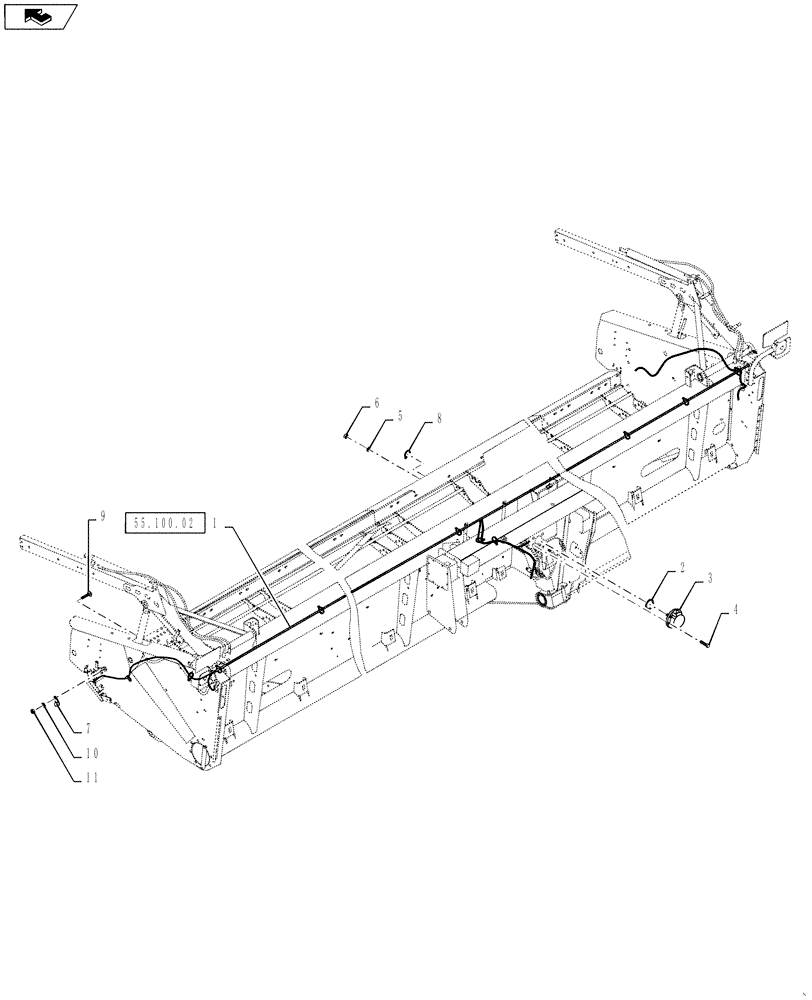

Запчасти Case IH 3162 (55.100.01) - HARNESS, FLEX HEADER, MOUNTING (55) - ELECTRICAL SYSTEMS

1

47841751

WIRE HARNESS

Flex Header, Start Serial: YFH050252

1шт.

1

84577892

WIRE HARNESS

Flex Header, Serial Range: -YFH050251

1шт.

2

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

Cover

1шт.

3

86606228

COVER

1шт.

4

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

5

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

6

86508813

NUT,M5, Cl 8

4шт.

7

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

4шт.

8

86566989

CABLE TIE,208mm L

17шт.

9

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.
