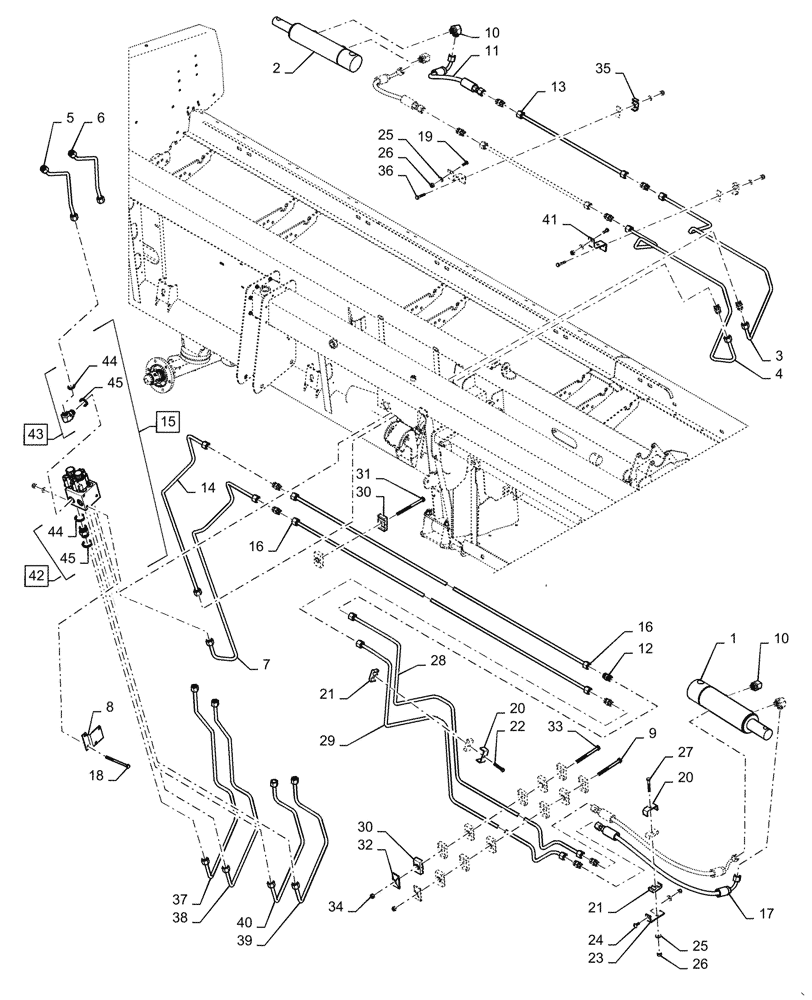

Запчасти Case IH 3162 (35.410.16) - HYDRAULIC CUTTERBAR ADJUST (35) - HYDRAULIC SYSTEMS

1

84210572

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 130mm Stroke

Cutterbar Adjust

1шт.

2

84210573

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 130mm Stroke

Cutterbar Adjust

1шт.

3

47373245

HYD TUBE

Cutterbar Adjust

1шт.

4

47373247

HYD TUBE

Cutterbar Adjust

1шт.

5

47373249

HYD TUBE

Cutterbar Adjust

1шт.

6

47373253

HYD TUBE

Cutterbar Adjust

1шт.

7

47373673

HYD TUBE

Cutterbar Adjust

1шт.

8

47373287

BRACKET

1шт.

9

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

10

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

4шт.

11

47373699

HYDRAULIC HOSE

Cutterbar Adjust

2шт.

12

84431546

UNION,11/16"-16 ORFS

11шт.

13

47373675

HYD TUBE

Cutterbar Adjust

2шт.

14

47392781

HYD TUBE

Cutterbar Adjust

1шт.

15

84411554

MANIFOLD

Hydraulic, Incl 42 - 43

1шт.

16

84424348

HYD TUBE

Cutterbar Adjust

2шт.

17

47373700

HYDRAULIC HOSE

Cutterbar Adjust

2шт.

18

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

20

430357

CLAMP

6шт.

21

431941

SUPPORT

3шт.

22

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

23

47379219

BRACKET

1шт.

24

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

11шт.

26

353308

NUT,M6 x 1.0, Cl 8

11шт.

27

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

28

47421703

HYD TUBE

Cutterbar Adjust

1шт.

29

47421705

HYD TUBE

Cutterbar Adjust

1шт.

30

87000148

CLAMP

Cutterbar Adjust

8шт.

31

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

3шт.

32

384870A1

PLATE

Hose Clamp Cover

2шт.

33

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

34

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

35

84484721

CLAMP

Double

4шт.

36

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

37

47391590

HYD TUBE

Cutterbar Adjust

1шт.

38

47391592

HYD TUBE

Cutterbar Adjust

1шт.

39

47357613

HYD TUBE

Cutterbar Adjust

1шт.

40

47357615

HYD TUBE

Cutterbar Adjust

1шт.

41

47396072

BRACKET

2шт.

42

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 44 - 45

4шт.

43

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl 44 - 45

2шт.

44

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

45

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
