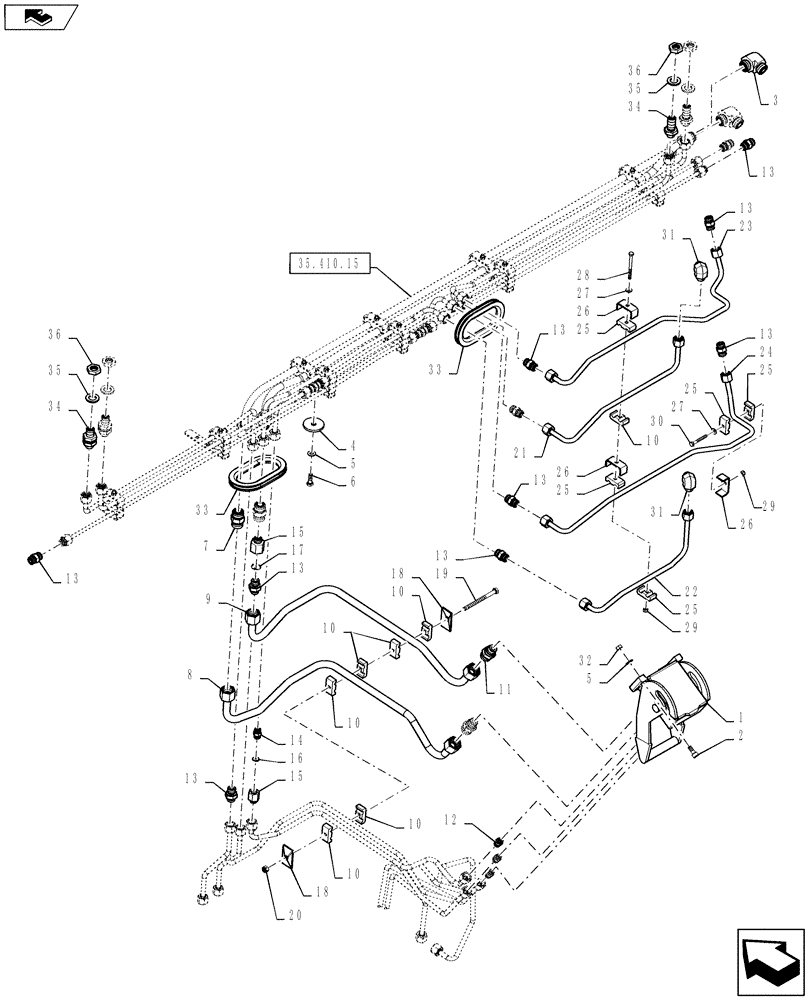

Запчасти Case IH 3162 (35.410.14[01]) - HYDRAULIC, TOP BEAM (35) - HYDRAULIC SYSTEMS

1

84434997

COUPLING

1шт.

2

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

2шт.

4

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

7

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

8

84357407

HYD TUBE

1шт.

9

84357413

HYD TUBE

1шт.

10

87000159

CLAMP

3шт.

11

87351379

HYD CONNECTOR

2шт.

12

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

13

84431546

UNION,11/16"-16 ORFS

10шт.

14

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

15

84062491

HYD CONNECTOR,11/16"-16 M ORFS x M18 x 1.5 Fem

Fitting

2шт.

16

84206574

RESTRICTOR

Valve

1шт.

17

385686

ORIFICE

Valve Restrictor

1шт.

18

384870A1

PLATE

Hose Clamp Cover

2шт.

19

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

21

84201900

HYD TUBE

1шт.

22

84201863

HYD TUBE

1шт.

23

84208580

HYD TUBE

1шт.

24

84208582

HYD TUBE

1шт.

25

430357

CLAMP

6шт.

26

431941

SUPPORT

3шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

30 Ft Draper

1шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

35 Ft Draper

2шт.

28

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

29

353308

NUT,M6 x 1.0, Cl 8

2шт.

30

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

31

87564749

ELBOW,90 Degree, 11/16"-16, ORFS

2шт.

32

43362

NUT,M8 x 1.25, Cl 10

4шт.

33

9850033

SEAL

2шт.

34

86978770

UNION,11/16"-6, ORFS

4шт.

35

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

36

87010704

BHD LOCK NUT,11/16"-16

4шт.
