Запчасти Case IH 3162 (35.410.12[01]) - HYDRAULIC, DRAPER TRANSPORT (35) - HYDRAULIC SYSTEMS

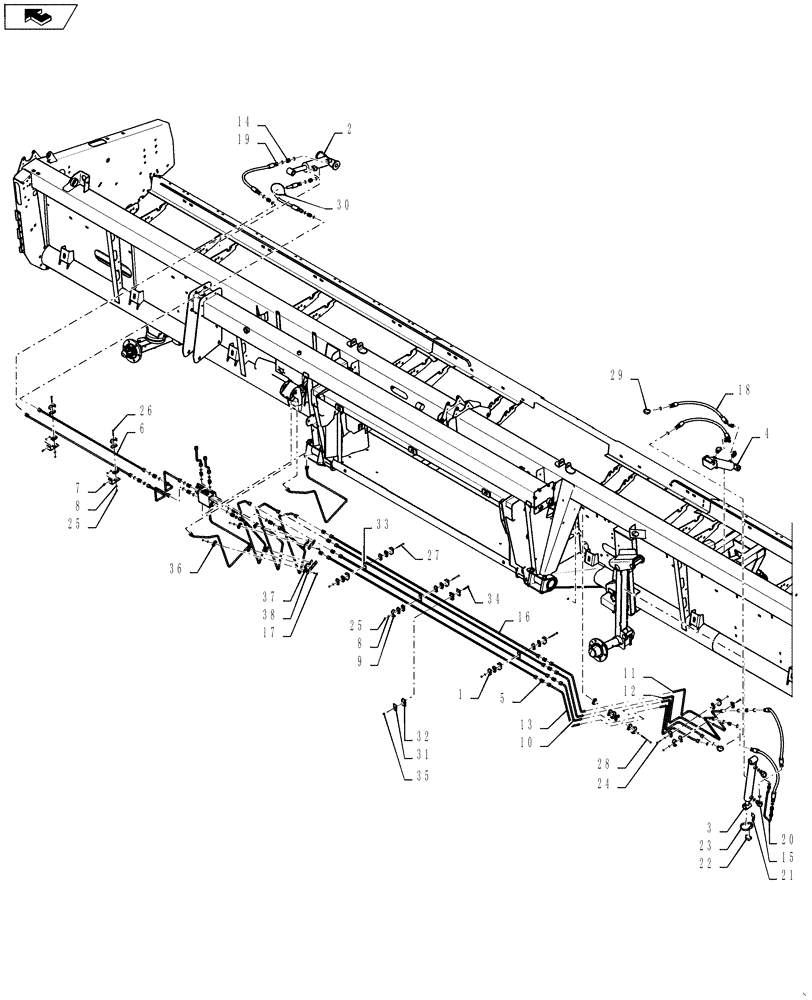

Схема запчастей Case IH 3162 - (35.410.12[01]) - HYDRAULIC, DRAPER TRANSPORT (35) - HYDRAULIC SYSTEMS
11
16
home
2
3
1
28
6
33
15
24
25
30
8
27
25
19
37
38
31
26
14
17
12
21
34
36
32
23
5
20
4
18
8
35
9
29
10
13
22
7

Артикул

Название

Примечание

Количество

1

430357

CLAMP

30 Foot Header

24шт.

1

430357

CLAMP

35, 40, 45 Foot Header

26шт.

2

84470538

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 135.8mm Stroke

Transport

1шт.

3

84470539

HYDRAULIC CYLINDER,Double Acting, 28.6mm Rod, 304.8mm Stroke

Transport

1шт.

4

84470540

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 203.2mm Stroke

Transport

1шт.

5

84431546

UNION,11/16"-16 ORFS

13шт.

6

84514603

HYD TUBE

Transport, 30 Foot Header

2шт.

6

84477953

HYD TUBE

Transport, 35, 40, 45 Foot Header

2шт.

7

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

30 Foot Header

1шт.

7

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

35, 40, 45 Foot Header

2шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

30 Foot Header

14шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

35, 40, 45 Foot Header

16шт.

9

431941

SUPPORT

30 Foot Header

12шт.

9

431941

SUPPORT

35, 40, 45 Foot Header

13шт.

10

84465983

HYD TUBE

Transport

1шт.

11

84480900

HYD TUBE

Transport

1шт.

12

84480898

HYD TUBE

Transport

1шт.

13

84465981

HYD TUBE

Transport

1шт.

14

87672176

HYD CONNECTOR

3/8 ORFS-ORB 1/2

2шт.

15

84390792

90 ELBOW

4шт.

16

84424348

HYD TUBE

Transport

4шт.

17

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

5шт.

18

84484718

HYDRAULIC HOSE,9.53mm ID x 580mm L, SAE 100R16

Transport

2шт.

19

84484717

HYDRAULIC HOSE,9.53mm ID x 690mm L, SAE 100R16

Transport

4шт.

20

84484194

HYD TUBE

Transport

1шт.

21

782673

ANTI-SKID STRIP

1шт.

22

640682

SPACER

1шт.

23

82012730

HOSE CLAMP,68mm - 85mm, Worm Gear

1шт.

24

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

2шт.

25

353308

NUT,M6 x 1.0, Cl 8

30 Foot Header

13шт.

25

353308

NUT,M6 x 1.0, Cl 8

35, 40, 45 Foot Header

15шт.

26

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

30 Foot Header

1шт.

26

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

35, 40, 45 Foot Header

2шт.

27

11030421

BOLT,Hex, M6 x 75mm, Cl 8.8

3шт.

28

86505841

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

2шт.

29

87564749

ELBOW,90 Degree, 11/16"-16, ORFS

2шт.

30

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

2шт.

31

86509354

PLATE,9/32" ID x 3/4" W x 2" L

1шт.

32

87000159

CLAMP

1шт.

33

384870A1

PLATE

Hose Clamp Cover

2шт.

34

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

35

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

36

84484721

CLAMP

5шт.

37

84542186

BRACKET

1шт.

38

84542187

BRACKET

1шт.

Выбрано товаров: 45
