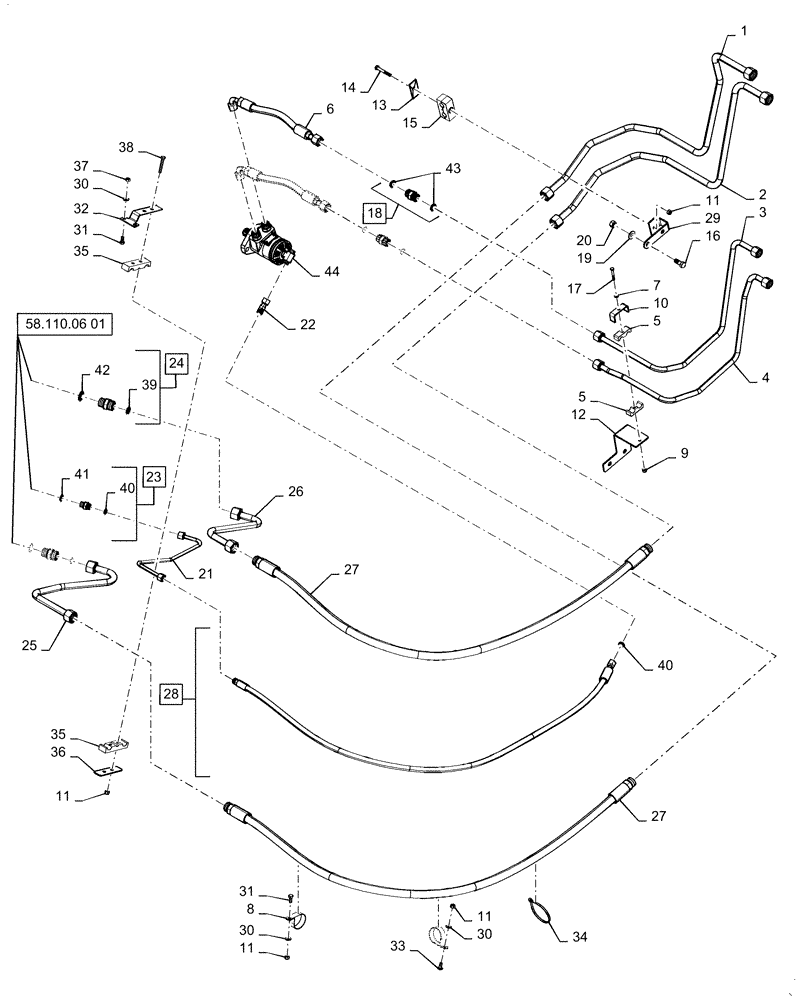

Запчасти Case IH 3162 (35.410.08[01]) - HYDRAULIC SYSTEM, FLEX DRAPER, BSN - YEH040861 (35) - HYDRAULIC SYSTEMS

1

47421311

HYD TUBE

To Valve Manifold Port M1

1шт.

2

47421313

HYD TUBE

To Valve Manifold Port M1R

1шт.

3

47379776

HYD TUBE

To Valve Manifold Port M2

1шт.

4

47379778

HYD TUBE

To Valve Manifold Port M2R

1шт.

5

430356

CLAMP

2шт.

6

47381943

HYDRAULIC HOSE,12.7mm ID x 377mm L, SAE 100R16

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

8

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

84814948

SUPPORT

1шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

12

47422209

BRACKET

1шт.

13

87000230

PLATE

1шт.

14

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

15

87000151

CLAMP

1шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

17

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

18

84431473

HYD CONNECTOR,1"-14 ORFS

Incl 43

2шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

20

9706685

NUT,M12 x 1.75, Cl 8

4шт.

21

47447243

TUBE

1шт.

22

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

1шт.

23

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 40 - 41

1шт.

24

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 39, 42

2шт.

25

47447235

TUBE

1шт.

26

47447233

TUBE

1шт.

27

47447236

HYDRAULIC HOSE

2шт.

28

47447237

HYDRAULIC HOSE

Incl 40

1шт.

29

47421315

BRACKET

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

32

47448234

BRACKET

1шт.

33

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

34

86566990

CABLE TIE,292mm OAL x 4.8mm W

4шт.

35

86998883

CLAMP

1шт.

36

84340688

PLATE

1шт.

37

9706690

NUT,M8 x 1.25, Cl 8

2шт.

38

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

39

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

42

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

43

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

44

84393904

HYDRAULIC MOTOR,46CC

1шт.
