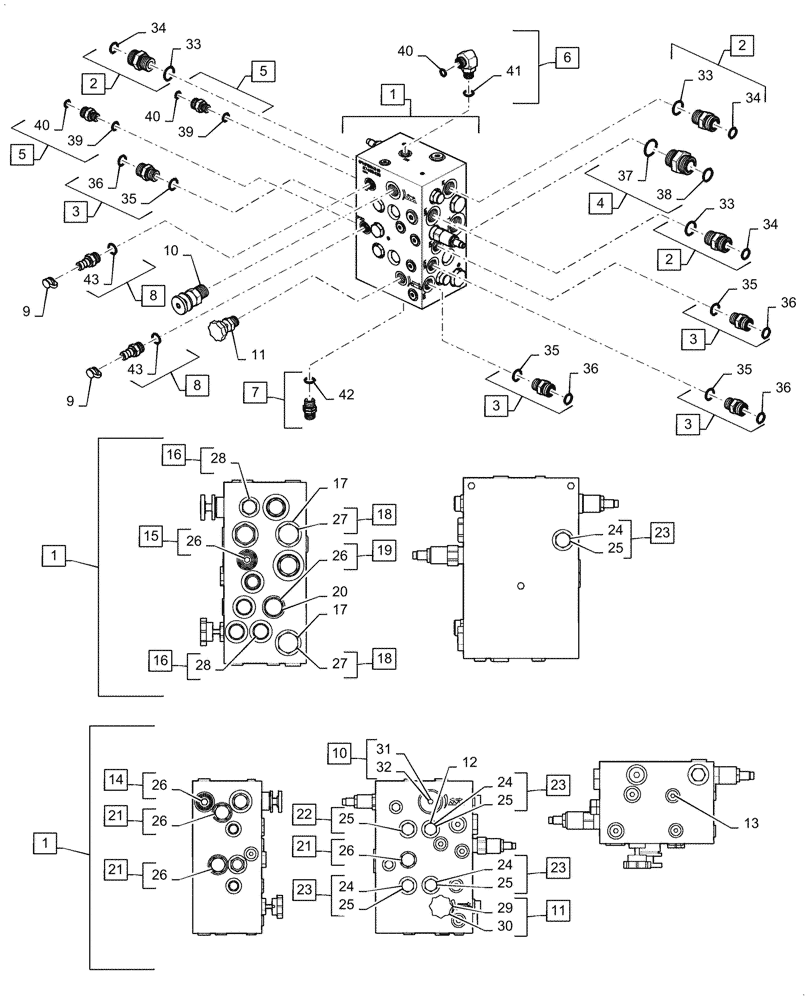

Запчасти Case IH 3162 (35.410.07) - HYDRAULIC MANIFOLD WITH FITTINGS (35) - HYDRAULIC SYSTEMS

1

87485435

MANIFOLD

Draper Hydraulic, Incl 12 - 43

1шт.

2

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 33, 34

3шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 35, 36

4шт.

4

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 37, 38

1шт.

5

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 39, 40

2шт.

6

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 40, 41

1шт.

7

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Straight Union, Incl 42

1шт.

8

84320565

COUPLING,M14 x 1.5

Diagnostic Fitting, Incl 43

2шт.

9

86502604

DUST CAP

2шт.

10

84411078

FLOW CONTROL VALVE

Incl 31, 32

1шт.

11

84411086

NEEDLE VALVE

Incl 29, 30

1шт.

12

84411414

ORIFICE

Disk

1шт.

13

84411405

ORIFICE

Plug

1шт.

14

84411401

VALVE PRESSURE RELIE

Incl 26

1шт.

15

84411087

VALVE PRESSURE RELIE

Incl 26

1шт.

16

87561976

HYDRAULIC VALVE

Directional Control, Incl 28

2шт.

17

84411085

PILOT VALVE

2шт.

18

84411053

CHECK VALVE

Incl 27

2шт.

19

84411070

PILOT VALVE

Incl 26

1шт.

20

84410996

CHECK VALVE

1шт.

21

87347961

CARTRIDGE

Check Valve, Incl 26

3шт.

22

84820530

HYDRAULIC VALVE

Check, Incl 25

1шт.

23

120459A1

VALVE,3/4" - 16

Check, Incl 24, 25

4шт.

24

87269971

SEAL KIT

Relief Valve

4шт.

25

1542831C1

SEAL KIT

Check Valve

4шт.

26

1542830C2

SEAL KIT

Check Valve

3шт.

27

431868A1

SEAL KIT

Check Valve

2шт.

28

329483A1

SEAL KIT

Valve

2шт.

29

9605346

SEAL KIT

Valve

1шт.

30

84412120

REPAIR KIT

Knob

1шт.

31

84412117

REPAIR KIT

Knob

1шт.

32

84412524

SEAL KIT

Valve

1шт.

33

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

36

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

37

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

38

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

39

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

40

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

42

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
