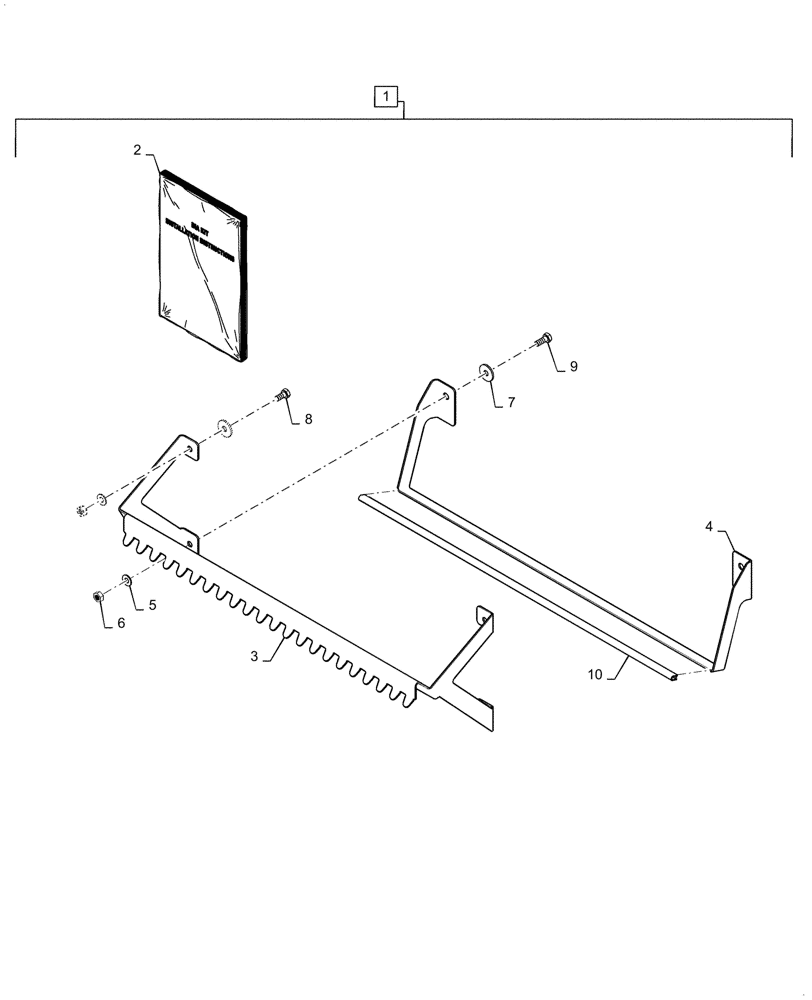

Запчасти Case IH 3162 (88.099.03) - KIT SUPPORT CROPLIFTER (88) - ACCESSORIES

1

48113320

Incl 2 - 10

KIT

1шт.

2

48113465

INSTRUCTION

1шт.

3

48113319

SUPPORT

2шт.

4

48113318

SUPPORT

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

100016

NUT,M10 x 1.5, Cl 8

8шт.

7

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

8шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

9

2975077

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

10

47560080

PROTECTION

1шт.

10

47560081

PROTECTION

1шт.
