Запчасти Case IH 3162 (88.099.02) - KIT CROP LIFTERS (88) - ACCESSORIES

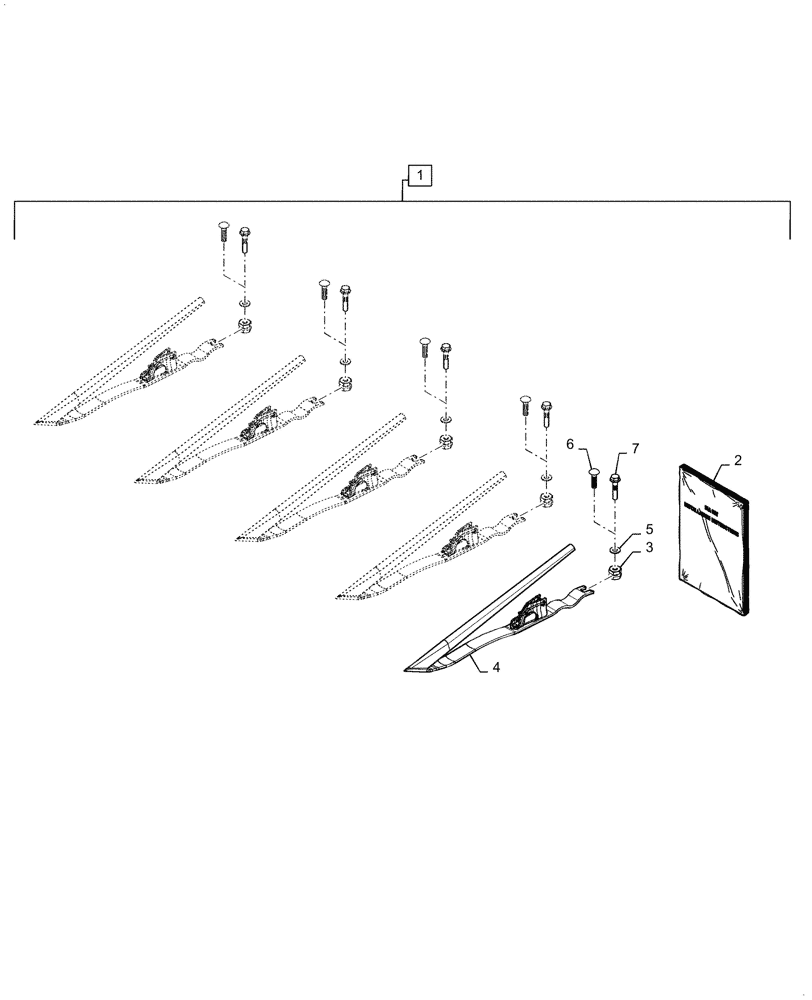

Схема запчастей Case IH 3162 - (88.099.02) - KIT CROP LIFTERS (88) - ACCESSORIES
2
3
7
6
1
5
4

Артикул

Название

Примечание

Количество

1

48113322

Incl 2 - 7

KIT

1шт.

2

48113473

INSTRUCTION

1шт.

3

9514326

NUT

5шт.

4

84332932

CROP LIFTER

5шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

6

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

For Use on Headers With Carriage Bolt Down Through the Cutterbar

5шт.

7

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

For Use on Headers With Carriage Bolt Up Through the Cutterbar

5шт.

Выбрано товаров: 7
