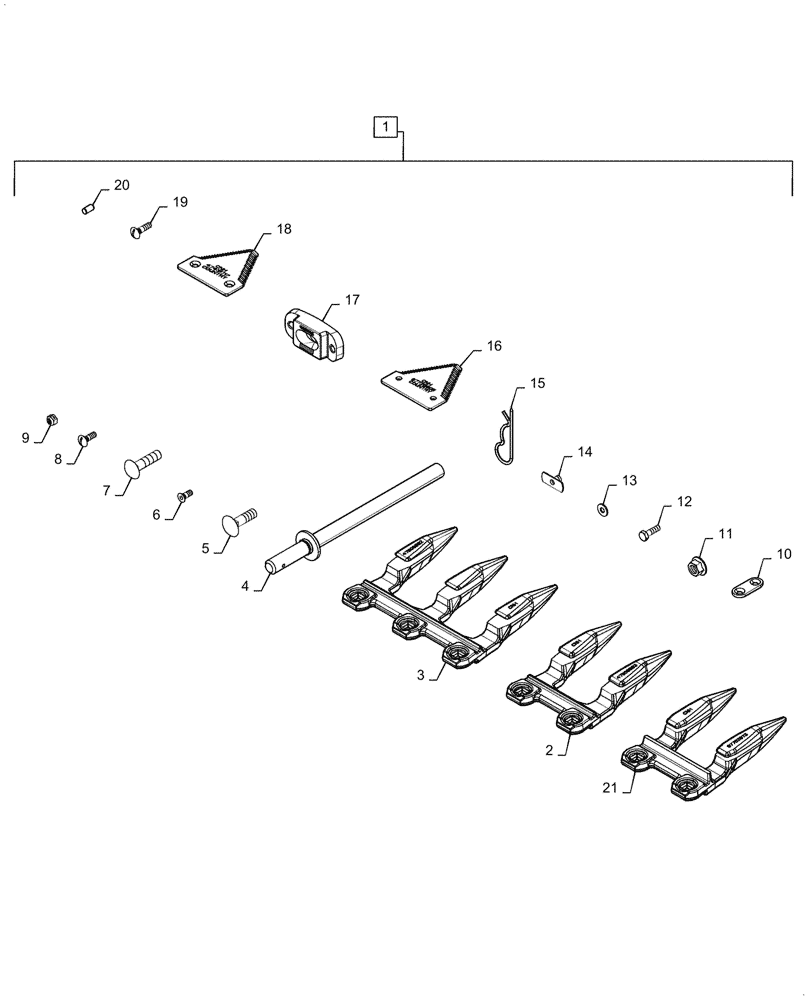

Запчасти Case IH 3162 (88.058.32) - KIT, MAINTENANCE, DRAPER HEADER (88) - ACCESSORIES

1

47702873

KIT

Maintenance, Draper Header, Incl 2 - 21

1шт.

2

47506883

GUARD

HT, Knife 3"

4шт.

3

47506882

GUARD

3 Point Knife

1шт.

4

84194057

FINGER,Assembly, Grain Header

2шт.

5

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

6

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

8шт.

7

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

8

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

50шт.

9

84429102

LOCK NUT

50шт.

10

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

6шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

8шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

14

84315756

NUT

12шт.

15

740591

SPRING,M10 x 67

2шт.

16

87728905

KNIFE SECTION

OS, BT, STD BH

25шт.

17

87620690

GUIDE,Auger Finger

2шт.

18

47431717

KNIFE SECTION

OS, BT CST BH

3шт.

19

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

16шт.

20

64780

DOWEL,1/4" x 1/2", HDN

2шт.

21

87702973

GUARD

HT, Knife 3"

8шт.
