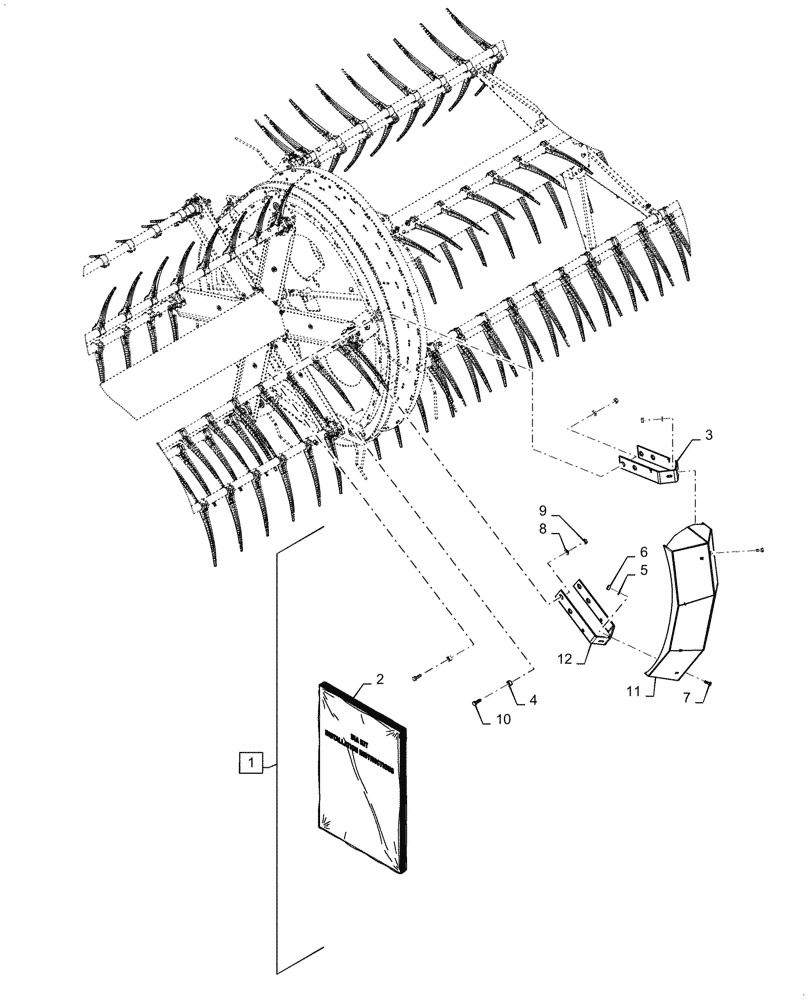

Запчасти Case IH 3162 (88.058.30) - KIT, REEL CENTER DIVIDER (88) - ACCESSORIES

1

48042255

KIT

Reel Center Divider, Incl 2 - 12

1шт.

2

48038041

INSTRUCTION

Reel Center Divider

1шт.

3

47862032

BRACKET

Dark Gray

1шт.

4

853070

SPACER,10.2mm ID x 19mm OD x 13mm Thk

8шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

9706690

NUT,M8 x 1.25, Cl 8

4шт.

7

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

9

100016

NUT,M10 x 1.5, Cl 8

8шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

11

47859914

SHIELD

Dark Gray

1шт.

12

47862060

BRACKET

Dark Gray

1шт.
