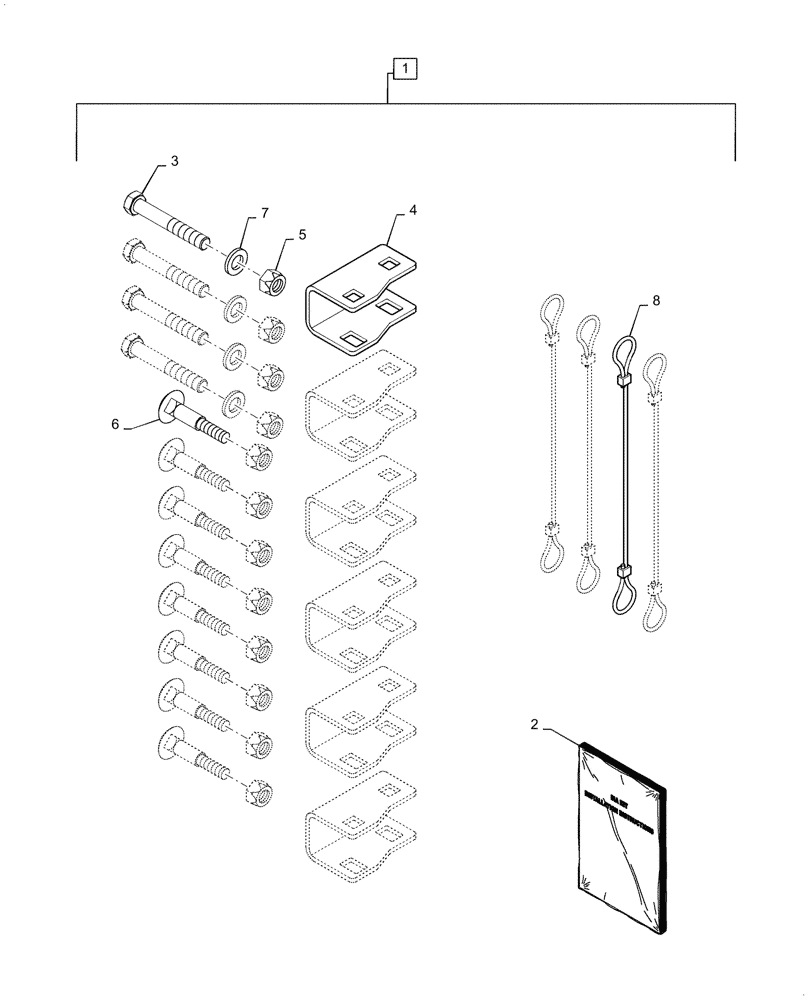

Запчасти Case IH 3162 (88.058.26) - KIT, FLEX HEAD CABLE SUPPORT 30-45 FT (88) - ACCESSORIES

1

47980370

KIT

Flex Head Cable Support 30-45FT, Incl 2 - 8

1шт.

2

47996059

INSTRUCTION

Flex Head Cable Support 30-45FT

1шт.

3

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

4

47971774

SUPPORT

Arm

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

6шт.

6

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

12шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

8

47976818

CABLE

Flex Draper

4шт.
