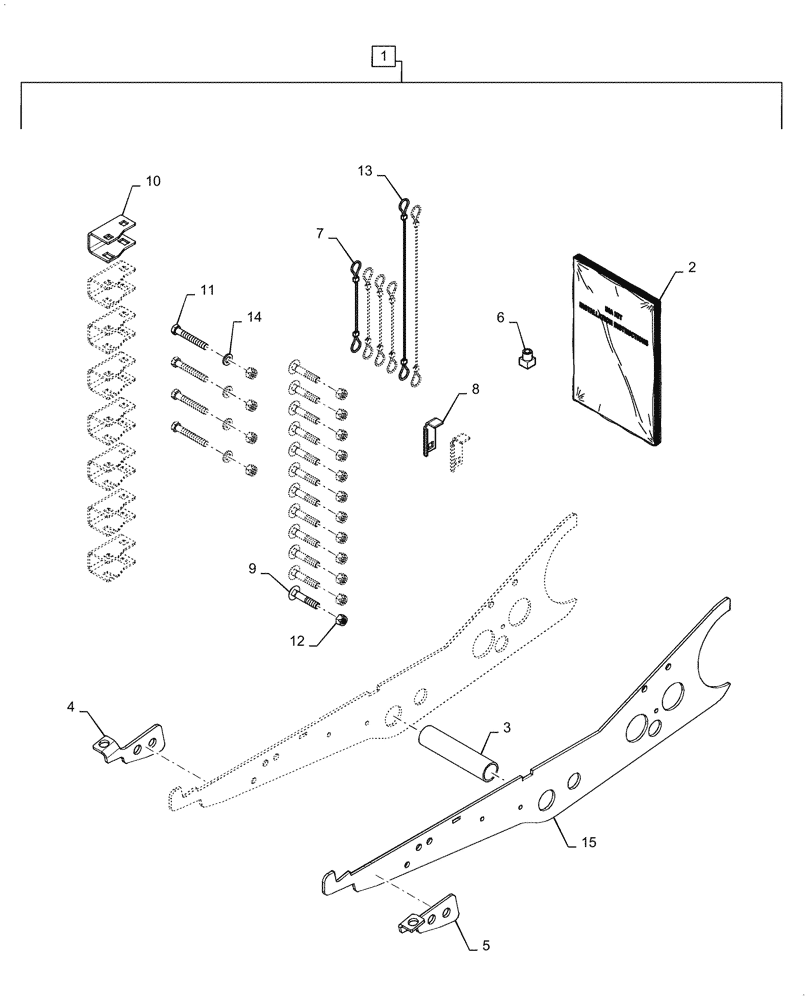

Запчасти Case IH 3162 (88.058.25) - KIT, RIGID HHC ARM SUPPORTS W/CABLES 25-45FT (88) - ACCESSORIES

1

47979763

KIT

Rigid HHC Arm Supports W/Cables, Incl 2 - 15

1шт.

2

47996059

INSTRUCTION

Rigid HHC Arm Supports W/Cables

1шт.

3

47889538

TUBE

1шт.

4

47888331

ANGLE

RH

1шт.

5

47888332

ANGLE

LH

1шт.

6

47965619

BAR

Spacer Stop

1шт.

7

47973747

CABLE

4шт.

8

47519068

BRACKET

2шт.

9

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

12шт.

10

47971774

SUPPORT

Arm

8шт.

11

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

12

100038

NUT,M12 x 1.75, Cl 8

16шт.

13

47975456

CABLE

2шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

15

84254201

PROFILE

2шт.
