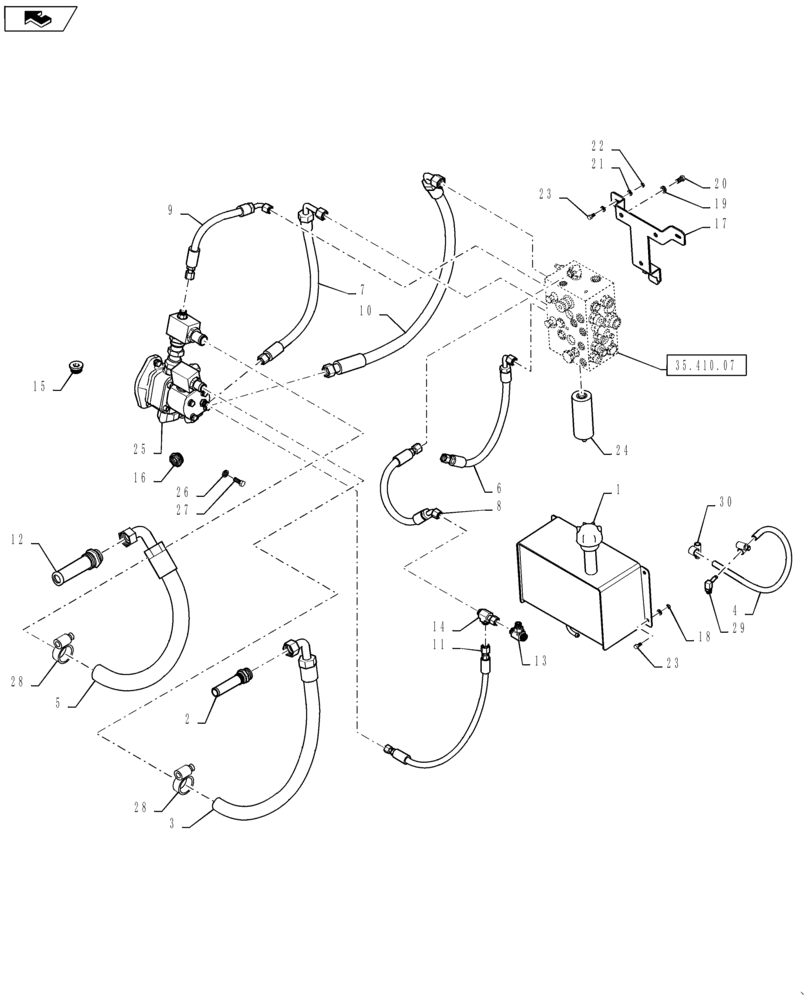

Запчасти Case IH 3162 (35.410.06[01]) - HYDRAULIC SYSTEM, DRAPER PUMP (35) - HYDRAULIC SYSTEMS

1

84333173

RESERVOIR,13.6L

Hydraulic Oil

1шт.

2

87360480

OIL COOLER FILTER

Oil Cooler, Incl 32 - 33

1шт.

3

84387783

HYDRAULIC HOSE,25.4mm ID x 790mm L, SAE 100R4

Draper Pump

1шт.

4

84387785

HOSE ASSY.,12.7mm ID x 710mm L, SAE 100R6

Draper Pump

1шт.

5

84329685

HYDRAULIC HOSE,31.75mm ID x 775mm L, SAE 100R4

Draper Pump

1шт.

6

84307003

HYDRAULIC HOSE,12.7mm ID x 567mm L, SAE 100R16

Draper Pump

1шт.

7

84307014

HYDRAULIC HOSE,15.88mm ID x 690mm L, SAE 100R16

Draper Pump

1шт.

8

84387784

HYDRAULIC HOSE,12.7mm ID x 571mm L, SAE 100R3

Draper Pump

1шт.

9

84307010

HYDRAULIC HOSE,12.7mm ID x 400mm L, SAE 100R16

Draper Pump

1шт.

10

84306989

HYDRAULIC HOSE,19.05mm ID x 937mm L, SAE 100R16

Draper Pump

1шт.

11

84307016

HOSE ASSY.,12.7mm ID x 755mm L, SAE 100R3

Draper Pump

1шт.

12

47753858

FILTER STRAINER

Suction, Incl 34 - 35

1шт.

13

86579710

TEE,13/16"-16 ORFS x M18 x 1.5 ORB Br

1шт.

14

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

15

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

16

85801249

LEVEL GAUGE

Hydraulic Oil

1шт.

17

84299467

BRACKET

Valve

1шт.

18

43362

NUT,M8 x 1.25, Cl 10

4шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

23

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

24

86974820

ACCUMULATOR

Hydraulic Accumulator

1шт.

25

84307019

HYDRAULIC PUMP

Double

1шт.

26

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

28

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

2шт.

29

86625228

HYD CONNECTOR,90°, 3/8" Hose x 9/16-18

1шт.

30

244358

HOSE CLIP,0.44" - 0.78"

2шт.

31

87325304

CAP

1шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

33

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

34

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

35

86583917

O-RING,2.9mm Thk x 44.6mm ID, Cl 6, 90 Duro

1шт.
