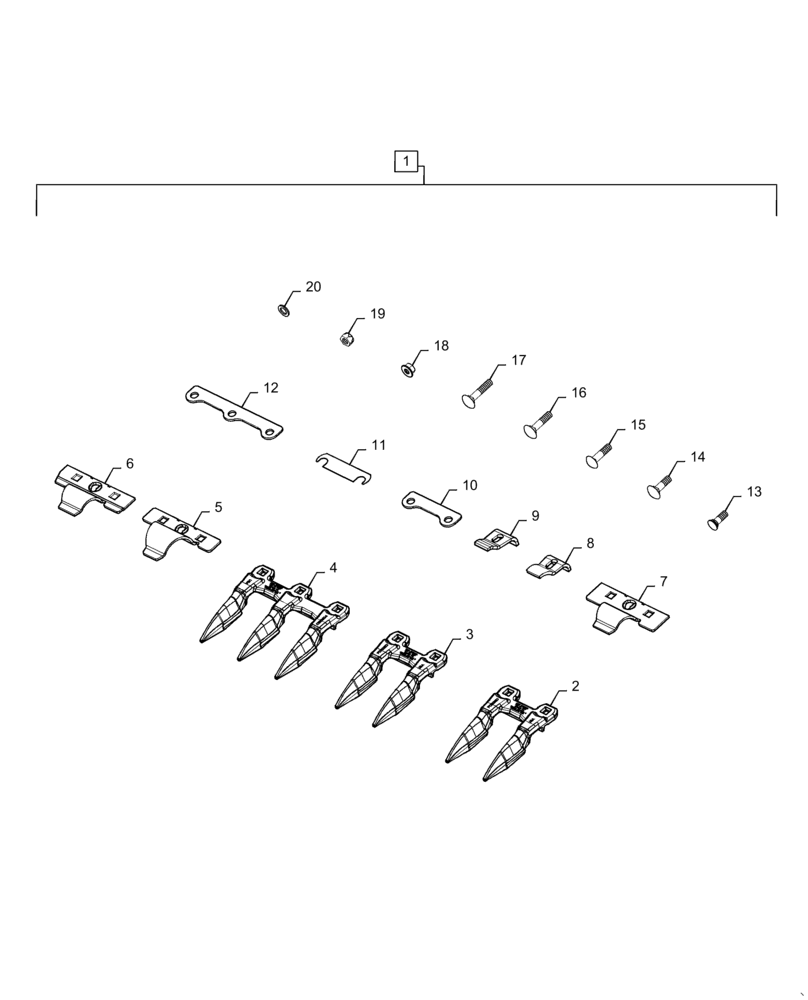

Запчасти Case IH 3162 (88.058.17[05]) - KIT CUTTERBAR 45FT W/O KNIFE (88) - ACCESSORIES

1

47795024

KIT

Includes 2 - 20

1шт.

2

87702973

GUARD

Knife 3IN

86шт.

3

47506883

GUARD

Knife 3IN

4шт.

4

47506882

GUARD

Knife 3IN Point

1шт.

5

84422134

KNIFE CLIP

3шт.

6

86630786

KNIFE CLIP,Heat Treated

20шт.

7

84184577

KNIFE CLIP

20шт.

8

84422992

ADJUSTING PLATE

3шт.

9

86630787

KNIFE CLIP

40шт.

10

84396061

SHIM,31mm OD x 3.25mm Thk

45шт.

11

482769

SHIM,25mm OD x 0.59mm Thk

40шт.

12

84384773

SHIM,31mm OD x 3.25mm Thk

1шт.

13

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

43шт.

14

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

88шт.

15

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

91шт.

16

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

2шт.

17

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.

18

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

43шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

183шт.

20

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.
