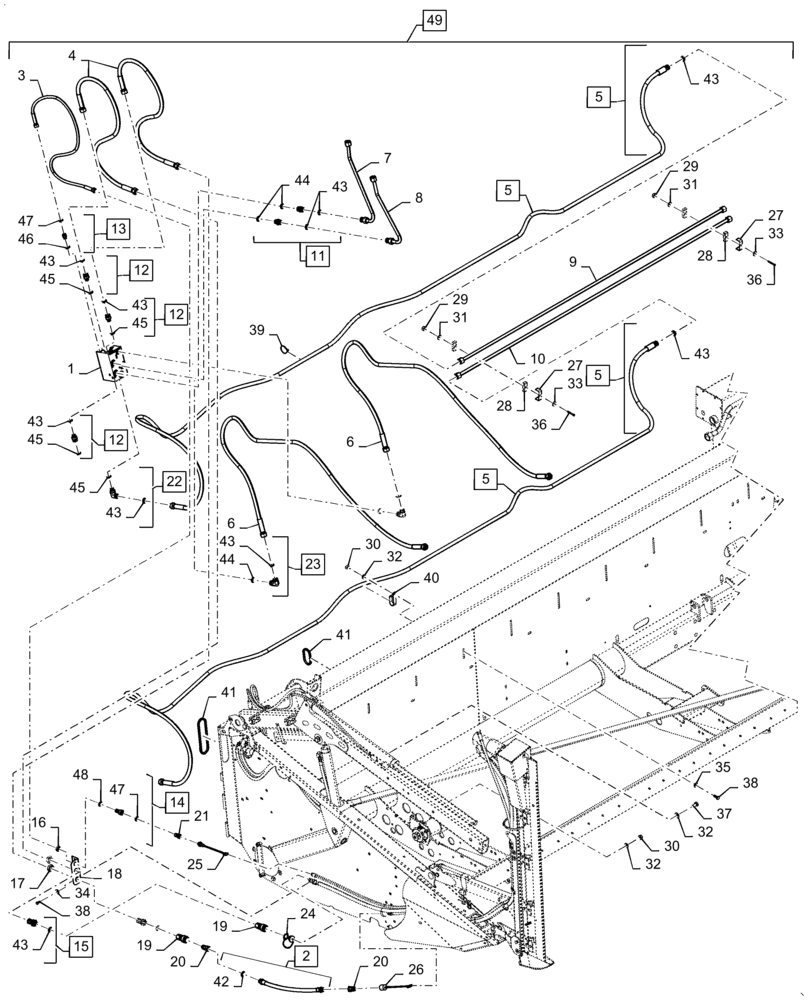

Запчасти Case IH 3162 (88.058.12[06]) - HYDRAULIC SYSTEM, VERTICAL KNIFE, 35, 40, 45 FT (88) - ACCESSORIES

1

84161894

HYDRAULIC VALVE

1шт.

2

47405008

HOSE

Incl 42

2шт.

3

47405570

HOSE

1шт.

4

47405566

HOSE

2шт.

5

47460126

HOSE

Incl 43

4шт.

6

47460123

HOSE

2шт.

7

84241720

HYD TUBE,16 mm OD

1шт.

8

84241724

HYD TUBE,16 mm OD

1шт.

9

47384989

TUBE

1шт.

10

47405372

TUBE

1шт.

11

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 43, 44

2шт.

12

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Incl 43, 45

3шт.

13

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 46, 47

1шт.

14

87381297

HYD CONNECTOR

Incl 47, 48

1шт.

15

87381299

HYD CONNECTOR

Incl 43

4шт.

16

87010704

BHD LOCK NUT,11/16"-16

1шт.

17

86639085

BHD LOCK NUT,1"-14, Bulkhead

4шт.

18

47386310

PLATE

2шт.

19

86592079

COUPLING, QUICK, FEM

4шт.

20

86592080

QUICK MALE COUPLING

4шт.

21

86592081

COUPLING, QUICK, FEM

1шт.

22

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

Incl 43, 45

1шт.

23

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 43, 44

2шт.

24

86592083

DUST CAP

2шт.

25

86592085

DUST CAP

1шт.

26

86621124

DUST CAP

2шт.

27

84814948

SUPPORT

2шт.

28

430356

CLAMP

4шт.

29

9706755

NUT,M6, Cl 8

2шт.

30

9706690

NUT,M8 x 1.25, Cl 8

22шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

26шт.

33

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

34

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

35

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

18шт.

36

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

37

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.

38

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

22шт.

39

86566989

CABLE TIE,208mm L

14шт.

40

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

18шт.

41

NH291525

EDGE

1шт.

42

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl 2

4шт.

43

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Incl 5, 11, 12, 15, 22, 23

16шт.

44

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Incl 11, 23

4шт.

45

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Incl 12, 22

4шт.

46

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Incl 13

1шт.

47

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl 13, 14

2шт.

48

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Incl 14

1шт.

49

47460118

SERVICE KIT

Incl 1 - 48

1шт.
