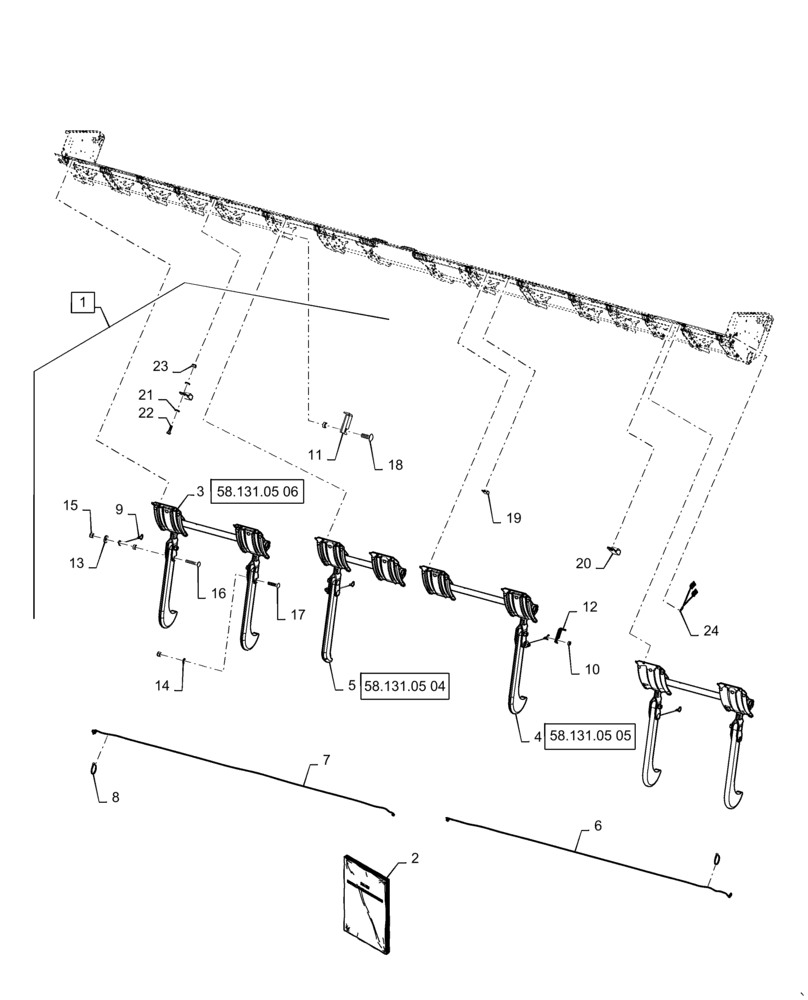

Запчасти Case IH 3162 (88.058.04) - DIA KIT, AHHC, RUN FLEX IN RIGID, 40FT - 45FT (88) - ACCESSORIES

1

47520945

SERVICE KIT

40 - 45FT Rigid HHC, Incl 2 - 24

1шт.

2

47520922

INSTRUCTION

Rigid AHHC Flex Draper

1шт.

3

47437102

ARM

Assy, Draper, Wide, Incl 14 - 15, 17

2шт.

4

47520446

ARM

Assy, Draper, Left Center

1шт.

5

47520447

ARM

Assy, Draper, Right Center

1шт.

6

84483640

WIRE HARNESS

Height/Tilt Extension

2шт.

7

84519657

WIRE HARNESS

Height Extension

2шт.

8

86566989

CABLE TIE,208mm L

10шт.

9

47520444

CABLE,280mm L

Flex Draper

4шт.

10

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

.516 ID x .749 OD x .28L ZND

8шт.

11

47518437

BRACKET

3шт.

12

47519068

BRACKET

1шт.

13

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

15

100038

NUT,M12 x 1.75, Cl 8

9шт.

16

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

4шт.

17

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

2шт.

18

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

3шт.

19

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

9шт.

20

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

Closed 6.3mm 3/8 Bolt

3шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

24шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

23

353308

NUT,M6 x 1.0, Cl 8

12шт.

24

47425969

PLUG

Sensor Dust

2шт.
