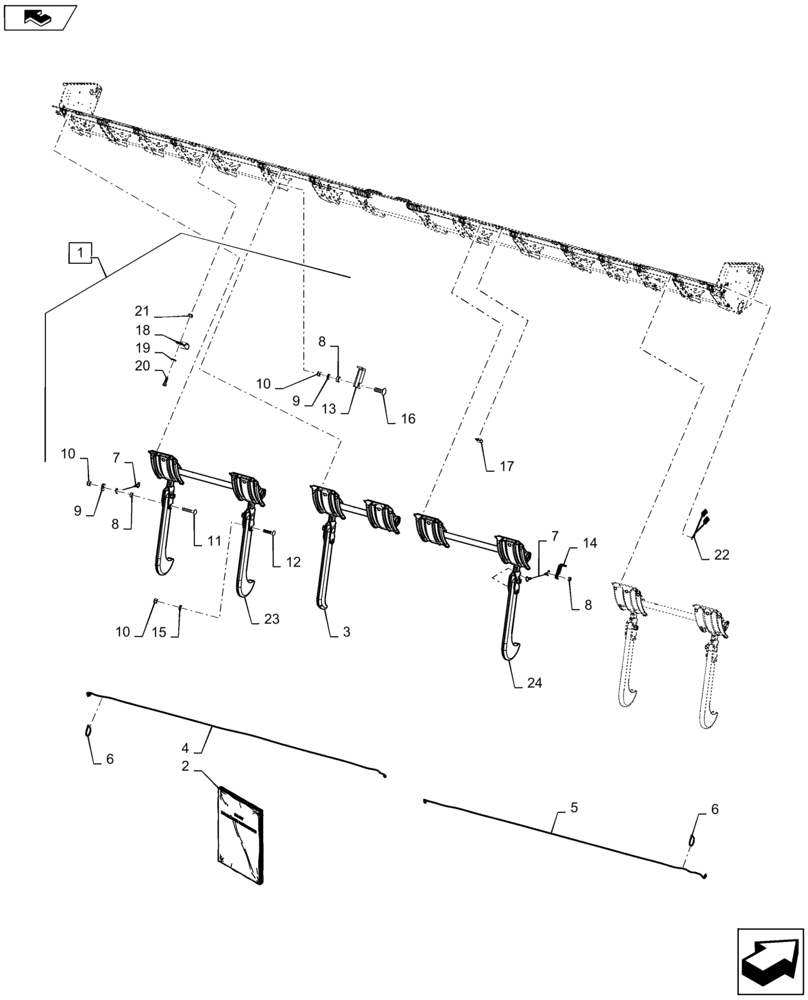

Запчасти Case IH 3162 (88.058.04) - DIA KIT, AHHC, RUN FLEX IN RIGID, 30FT - 35FT (88) - ACCESSORIES

1

47519863

SERVICE KIT

Incl 2 - 24

1шт.

2

47520922

INSTRUCTION

Rigid AHHC Flex Draper

1шт.

3

47520447

ARM

Assy, Draper, Right Center

1шт.

4

84483640

WIRE HARNESS

Height/Tilt Extension

2шт.

5

84483639

WIRE HARNESS

Height Extension

2шт.

6

86566989

CABLE TIE,208mm L

10шт.

7

47520444

CABLE,280mm L

Flex Draper

4шт.

8

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

.516 ID .749OD .28L ZND

8шт.

9

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

10

100038

NUT,M12 x 1.75, Cl 8

9шт.

11

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

4шт.

12

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

2шт.

13

47518437

BRACKET

3шт.

14

47519068

BRACKET

1шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

16

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

3шт.

17

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

5шт.

18

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

6.3mm, M10 Bolt

3шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

16шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

21

353308

NUT,M6 x 1.0, Cl 8

8шт.

22

47425969

PLUG

Sensor Dust

2шт.

23

47437102

ARM

Assy Draper, Wide

2шт.

24

47520446

ARM

Assy Draper, Left Center

1шт.
