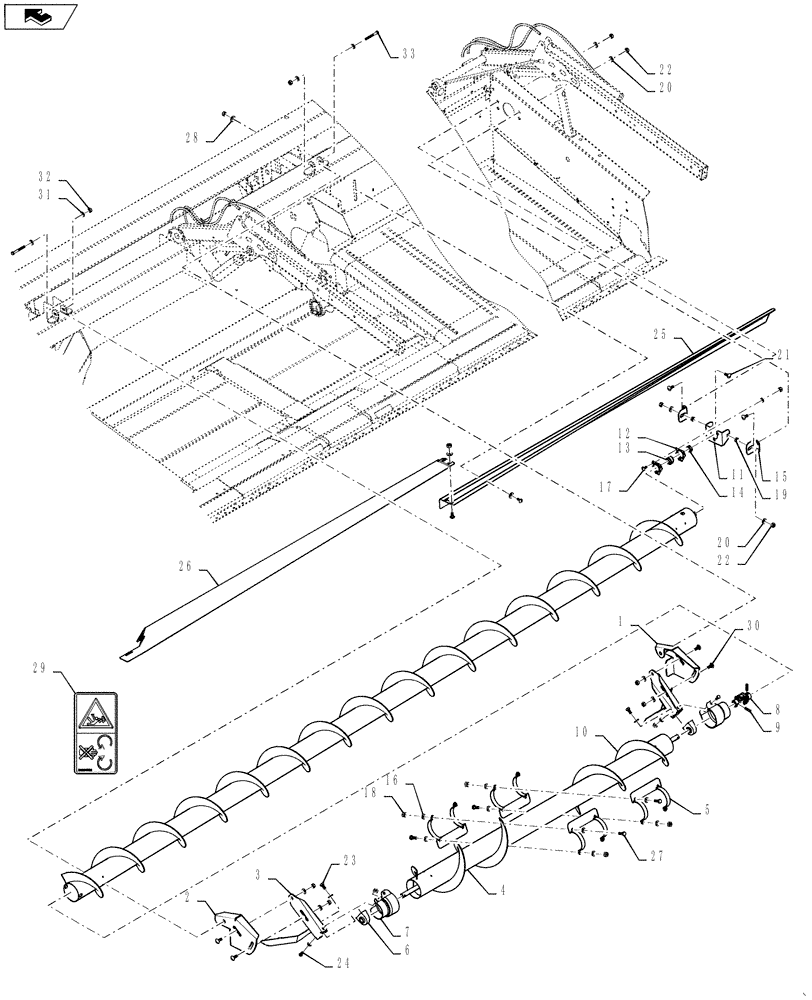

Запчасти Case IH 3162 (88.058.03[02]) - DIA KIT, AUGER, UPPER CROSS (88) - ACCESSORIES

1

84465805

BRACKET

Left Hand

1шт.

2

84465810

BRACKET

Right Hand

1шт.

3

84465831

BRACKET

2шт.

4

84378035

AUGER

Center

1шт.

5

84466056

PADDLE

4шт.

6

87686044

PILLOW BLOCK

Bearing, 1"

2шт.

7

84465819

SHIELD

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

84473444

JOINT

Universal

1шт.

9

86624091

PIN,9.53mm OD x 44.45mm L, Coiled

2шт.

10

84475030

AUGER

Left Hand, 25 Foot Header

1шт.

84475031

AUGER

Left Hand, 30 Foot Header

1шт.

84475032

AUGER

Left Hand, 35 Foot Header

1шт.

84378032

AUGER

Left Hand, 40 Foot Header

1шт.

84475033

AUGER

Left Hand, 45 Foot Header

1шт.

11

47801186

BRACKET

Left Hand

1шт.

12

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

13

247829

BALL BEARING,25.4mm ID x 52mm OD x 14.99mm W

1шт.

14

38260

COLLAR

1шт.

15

84465871

BRACKET

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

25 Foot Header

32шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

30 Foot Header

34шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

35 Foot Header

36шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

40 Foot Header

38шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

45 Foot Header

40шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

25 Foot Header

12шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

30 Foot Header

14шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

35 Foot Header

16шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

40 Foot Header

18шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

45 Foot Header

20шт.

18

9706690

NUT,M8 x 1.25, Cl 8

25 Foot Header

24шт.

9706690

NUT,M8 x 1.25, Cl 8

30 Foot Header

26шт.

9706690

NUT,M8 x 1.25, Cl 8

35 Foot Header

28шт.

9706690

NUT,M8 x 1.25, Cl 8

40 Foot Header

30шт.

9706690

NUT,M8 x 1.25, Cl 8

45 Foot Header

32шт.

19

84469627

SPACER,11.11mm ID x 17.46mm OD x 6mm L

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

21

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

22

8475948

NUT,M10 x 1.5, Cl 8

6шт.

23

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

25

84475096

STRIPPER

Left Hand, 25 Foot Header

1шт.

84475097

STRIPPER

Left Hand, 30 Foot Header

1шт.

84475098

STRIPPER

Left Hand, 35 Foot Header

1шт.

84466130

STRIPPER

Left Hand, 40 Foot Header

1шт.

84475099

STRIPPER

Left Hand, 45 Foot Header

1шт.

26

84475111

STRIPPER

Left Hand, 25 Foot Header

1шт.

84475112

STRIPPER

Left Hand, 30 Foot Header

1шт.

84475113

STRIPPER

Left Hand, 35 Foot Header

1шт.

84466132

STRIPPER

Left Hand, 40 Foot Header

1шт.

84475114

STRIPPER

Left Hand, 45 Foot Header

1шт.

27

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

28

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

25 Foot Header

7шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

30 Foot Header

9шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

35 Foot Header

11шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

40 Foot Header

13шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

45 Foot Header

15шт.

29

84004736

DANGER DECAL

Never Reach Into Rotating Auger

2шт.

30

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

32

9706685

NUT,M12 x 1.75, Cl 8

6шт.

33

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.
