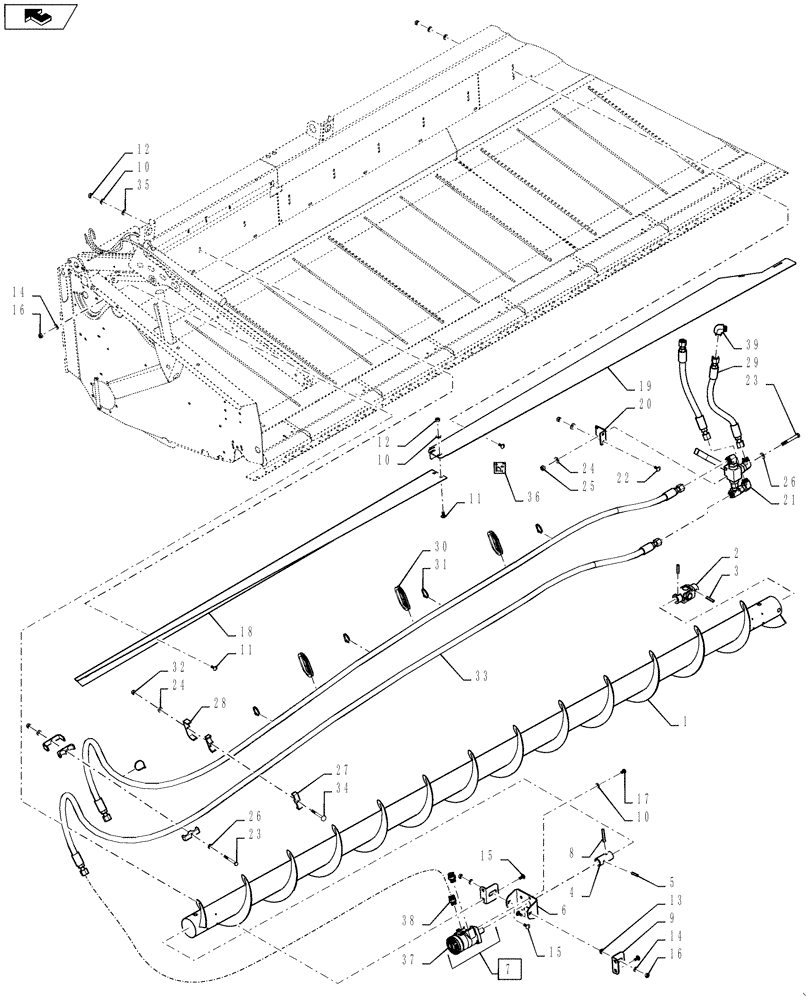

Запчасти Case IH 3162 (88.058.03[01]) - DIA KIT, AUGER, UPPER CROSS (88) - ACCESSORIES

0

84599538

SERVICE KIT

Upper Cross Auger 25 Ft, Incl 1 - 39 this page and 1 - 33 next page

1шт.

84599539

SERVICE KIT

Upper Cross Auger 30 Ft, Incl 1 - 39 this page and 1 - 33 next page

1шт.

84599540

SERVICE KIT

Upper Cross Auger 35 Ft, Incl 1 - 39 this page and 1 - 33 next page

1шт.

84599541

SERVICE KIT

Upper Cross Auger 40 Ft, Incl 1 - 39 this page and 1 - 33 next page

1шт.

84599542

SERVICE KIT

Upper Cross Auger 45 Ft, Incl 1 - 39 this page and 1 - 33 next page

1шт.

1

84475055

AUGER

Right Hand, 25 Foot Header

1шт.

84475056

AUGER

Right Hand, 30 Foot Header

1шт.

84475057

AUGER

Right Hand, 35 Foot Header

1шт.

84378033

AUGER

Right Hand, 40 Foot Header

1шт.

84475058

AUGER

Right Hand, 45 Foot Header

1шт.

2

84473444

JOINT

Universal

1шт.

3

86624091

PIN,9.53mm OD x 44.45mm L, Coiled

2шт.

4

84465815

COUPLING,25.4mm ID x 38.1mm OD x 80mm L

1шт.

5

86624089

PIN,7.94mm OD x 38.1mm L

1шт.

6

84465818

BRACKET

RH, Serial Range: -YEH040861

1шт.

6

47672861

BRACKET

RH, Start Serial: YEH050000

1шт.

7

84427586

HYDRAULIC MOTOR

With Fittings, Inc. 37, 38

1шт.

8

84158586

COILED PIN

.375 x 2.50

1шт.

9

84465871

BRACKET

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

25 Foot Header

13шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

30 Foot Header

15шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

35 Foot Header

17шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

40 Foot Header

19шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

45 Foot Header

21шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

25 Foot Header

9шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

30 Foot Header

11шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

35 Foot Header

13шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

40 Foot Header

15шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

45 Foot Header

17шт.

12

9706690

NUT,M8 x 1.25, Cl 8

25 Foot Header

9шт.

9706690

NUT,M8 x 1.25, Cl 8

30 Foot Header

11шт.

9706690

NUT,M8 x 1.25, Cl 8

35 Foot Header

13шт.

9706690

NUT,M8 x 1.25, Cl 8

40 Foot Header

15шт.

9706690

NUT,M8 x 1.25, Cl 8

45 Foot Header

17шт.

13

84469627

SPACER,11.11mm ID x 17.46mm OD x 6mm L

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

16

8475948

NUT,M10 x 1.5, Cl 8

6шт.

17

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

18

84475128

STRIPPER

Right Hand, 25 Foot Header

1шт.

84475129

STRIPPER

Right Hand, 30 Foot Header

1шт.

84475130

STRIPPER

Right Hand, 35 Foot Header

1шт.

84466134

STRIPPER

Right Hand, 40 Foot Header

1шт.

84475131

STRIPPER

Right Hand, 45 Foot Header

1шт.

19

84475170

STRIPPER

Right Hand, 25 Foot Header

1шт.

84475171

STRIPPER

Right Hand, 30 Foot Header

1шт.

84475172

STRIPPER

Right Hand, 35 Foot Header

1шт.

84466136

STRIPPER

Right Hand, 40 Foot Header

1шт.

84475173

STRIPPER

Right Hand, 45 Foot Header

1шт.

20

84470849

BRACKET

Valve

1шт.

21

84475428

VALVE

Directional Control With Fittings

1шт.

22

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

23

766535

BOLT,Hex, M6 x 1 x 65mm, Cl 8.8, Full Thd

3шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

25, 30, 35, 40 Foot Header

5шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

45 Foot Header

6шт.

25

9706755

NUT,M6, Cl 8

4шт.

26

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

27

457547

CLAMP

25, 30, 35, 40 Foot Header

2шт.

457547

CLAMP

45 Foot Header

4шт.

28

743320

SUPPORT

25, 30, 35, 40 Foot Header

1шт.

743320

SUPPORT

45 Foot Header

2шт.

29

84470851

HYDRAULIC HOSE,12.7mm ID x 480mm L, SAE 100R16

Auger, Upper Cross

2шт.

30

9850033

SEAL

3шт.

31

86566989

CABLE TIE,208mm L

25 Foot Header

5шт.

86566989

CABLE TIE,208mm L

30 Foot Header

6шт.

86566989

CABLE TIE,208mm L

35 Foot Header

7шт.

86566989

CABLE TIE,208mm L

40 Foot Header

8шт.

86566989

CABLE TIE,208mm L

45 Foot Header

9шт.

32

353308

NUT,M6 x 1.0, Cl 8

25, 30, 35, 40 Foot Header

1шт.

353308

NUT,M6 x 1.0, Cl 8

45 Foot Header

2шт.

33

84477950

HYDRAULIC HOSE,15.88mm ID x 2975mm L, SAE 100R16

Auger, Upper Cross, 25 Foot Header

2шт.

84477947

HYDRAULIC HOSE,15.88mm ID x 3660mm L, SAE 100R16

Auger, Upper Cross, 30 Foot Header

2шт.

84477946

HYDRAULIC HOSE,15.88mm ID x 4407mm L, SAE 100R16

Auger, Upper Cross, 35 Foot Header

2шт.

84424352

HYDRAULIC HOSE,15.88mm ID x 5207mm L, SAE 100R16

Auger, Upper Cross, 40 Foot Header

2шт.

84477951

HYDRAULIC HOSE,15.88mm ID x 6000mm L, SAE 100R16

Auger, Upper Cross, 45 Foot Header

2шт.

34

86512419

CARRIAGE BOLT,Sq Nk, M6 x 70mm, Cl 8.8

1шт.

35

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

25 Foot Header

7шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

30 Foot Header

9шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

35 Foot Header

11шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

40 Foot Header

13шт.

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

45 Foot Header

15шт.

36

84486088

DECAL

Pea Auger Valve

1шт.

37

84427584

HYDRAULIC MOTOR,120CC

1шт.

38

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

39

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

1шт.
