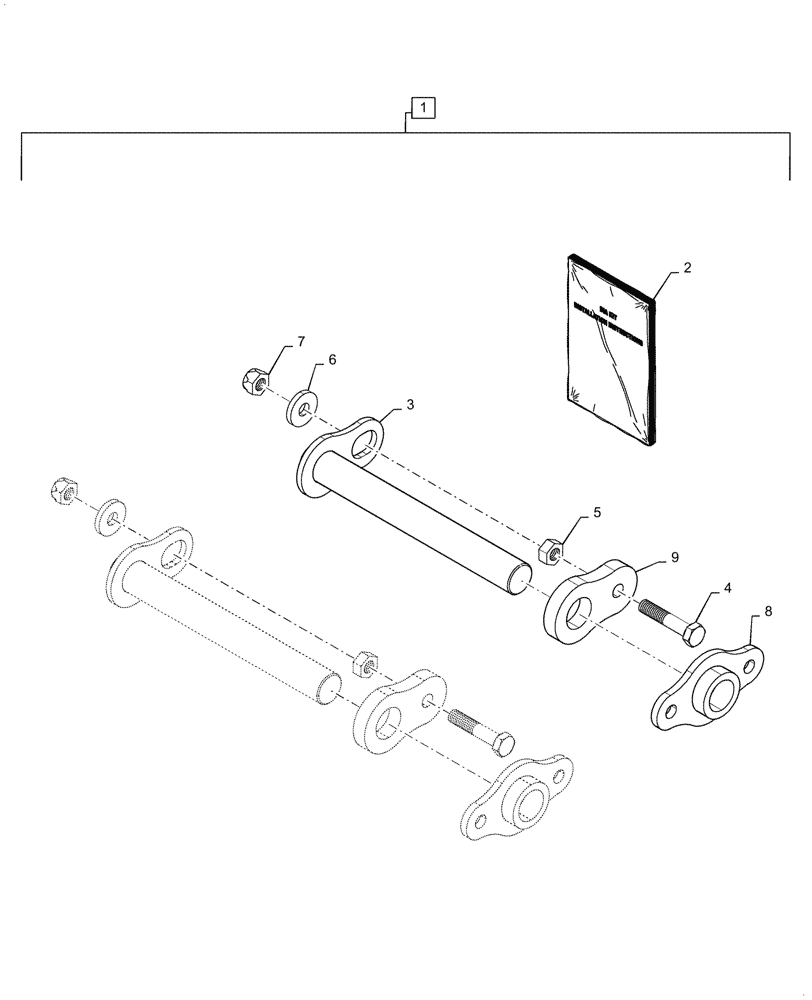

Запчасти Case IH 3162 (88.044.04) - KIT, GAUGE WHEEL ARM PIVOT (88) - ACCESSORIES

1

47982580

KIT

Gauge Wheel Arm Pivot, Incl 2 - 9

1шт.

2

47996044

INSTRUCTION

Gauge Wheel Arm Pivot

1шт.

3

47892745

PIN

Gauge Whel

2шт.

4

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

2шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

47982565

PLATE

2шт.

9

47892712

PLATE

2шт.
