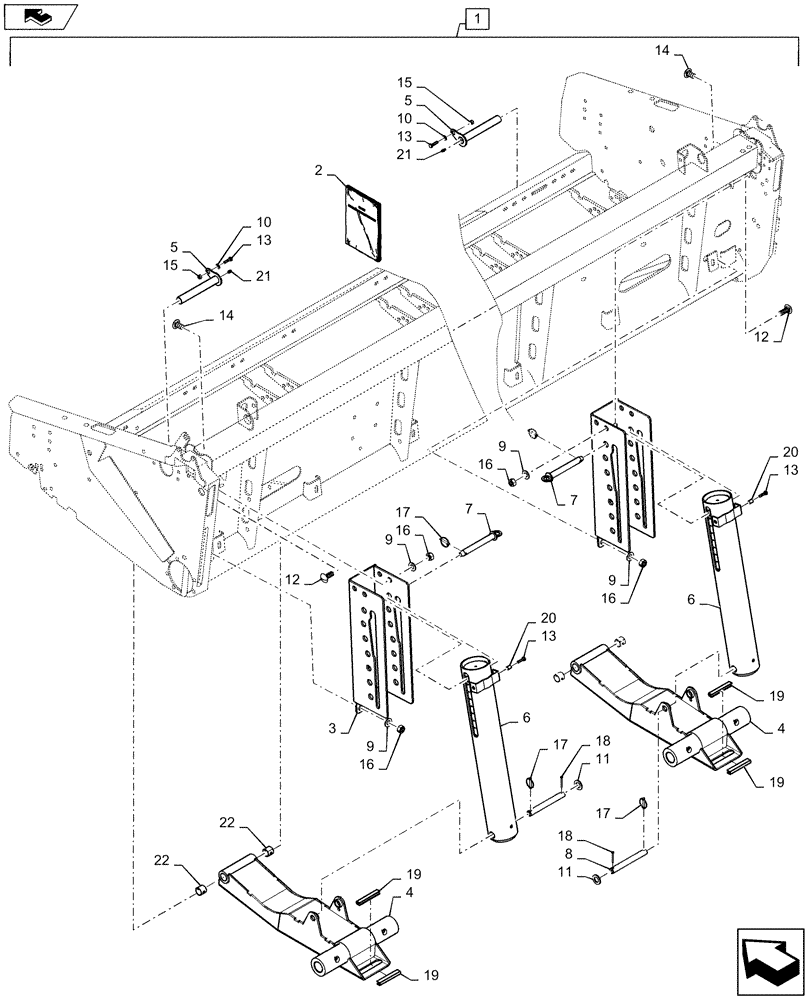

Запчасти Case IH 3162 (88.044.02) - DIA, KIT, GAUGE WHEEL (88) - ACCESSORIES

1

84590440

SERVICE KIT

Assy, Gauge Wheel, Incl 2 - 22

1шт.

2

84590705

INSTRUCTION

Assy, Gauge Wheel Kit

1шт.

3

47360320

ANGLE

2шт.

4

84551485

LOWER LINK

2шт.

5

84553439

PIN,25.4mm OD x 202mm L

Weld Assy, Incl 22

2шт.

6

84551892

SPRING

Assy

2шт.

7

84551893

PIN

Weld Assy

2шт.

8

84499279

PIN,20mm OD x 173.5mm L

Weld Assy

2шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

11

14497124

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

12

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

8шт.

13

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

14

87698767

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 30mm, Cl 10.9

4шт.

15

68841

NUT,M8 x 1.25, Cl 8

2шт.

16

392530

NUT,M16, Cl 10

13шт.

17

82013836

ROLL PIN,6mm OD

4шт.

18

300595

COTTER PIN,M4 x 40

2шт.

19

9850033

SEAL

1шт.

20

84551884

SPACER,9.3mm ID x 11.1mm OD x 15mm L

4шт.

21

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

22

47519010

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

2шт.
