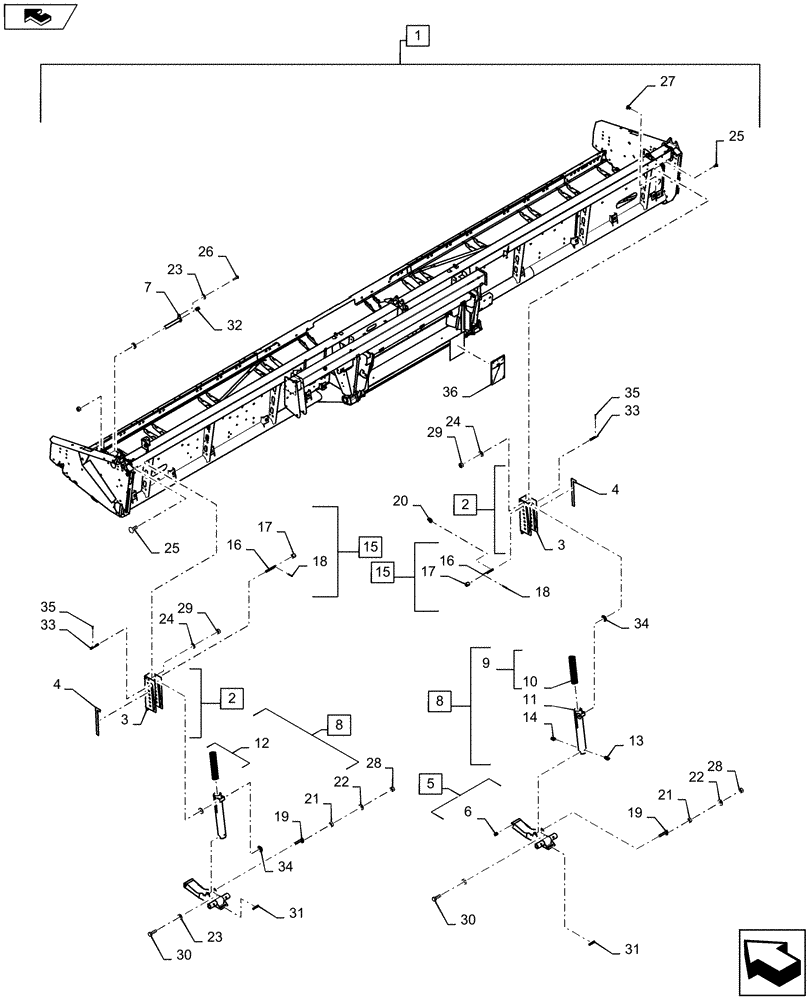

Запчасти Case IH 3162 (88.044.01) - DIA KIT, GAUGE WHEEL (88) - ACCESSORIES

1

47424191

KIT

Gauge Wheel, Incl 2 - 36

1шт.

2

47426038

GUIDE

Sign Placement, Incl 3, 4

2шт.

3

47395007

ANGLE

Sign Placement Guide

1шт.

4

47407347

DECAL

Gauge Wheels

1шт.

5

84551485

LOWER LINK

Incl 6

2шт.

6

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

Lower Link

2шт.

7

47424946

PIN,25.4mm OD x 202mm L

Gauge Wheel

2шт.

8

47425526

SPRING

Incl 9 - 14

2шт.

9

47424200

HOLDER

Spring Assy

1шт.

10

BN68598

SPRING

Spring Assy

1шт.

11

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

Spring Assy

4шт.

12

47425762

BAR

Spring Assy

1шт.

13

323713

LUBE NIPPLE,M6 x 1mm

M6 x 1, Spring Assy

1шт.

14

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

Spring Assy

1шт.

15

NSS

NOT SOLD SEPARAT

PIN ASSY, Incl 16 - 18

2шт.

16

47429830

PIN,20mm OD x 192.8mm L

1шт.

17

47429832

SLEEVE,20.65mm ID x 28.58mm OD x 35mm L

1шт.

18

87690468

ROLL PIN

.250 x 3.0 Inch

1шт.

19

47429828

PIN,20mm OD x 155mm L

2шт.

20

82013836

ROLL PIN,6mm OD

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

25

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

8шт.

26

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

27

87698767

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 30mm, Cl 10.9

M16 x 30

4шт.

28

68841

NUT,M8 x 1.25, Cl 8

4шт.

29

392530

NUT,M16, Cl 10

13шт.

30

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

31

9850033

SEAL

4шт.

32

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

33

NSS

NOT SOLD SEPARAT

PIN, Included In 1

2шт.

34

47412945

SPACER

4шт.

35

412686

COTTER PIN,M5 x 32

4шт.

36

84590705

INSTRUCTION

Gauge Wheel Kit

1шт.
