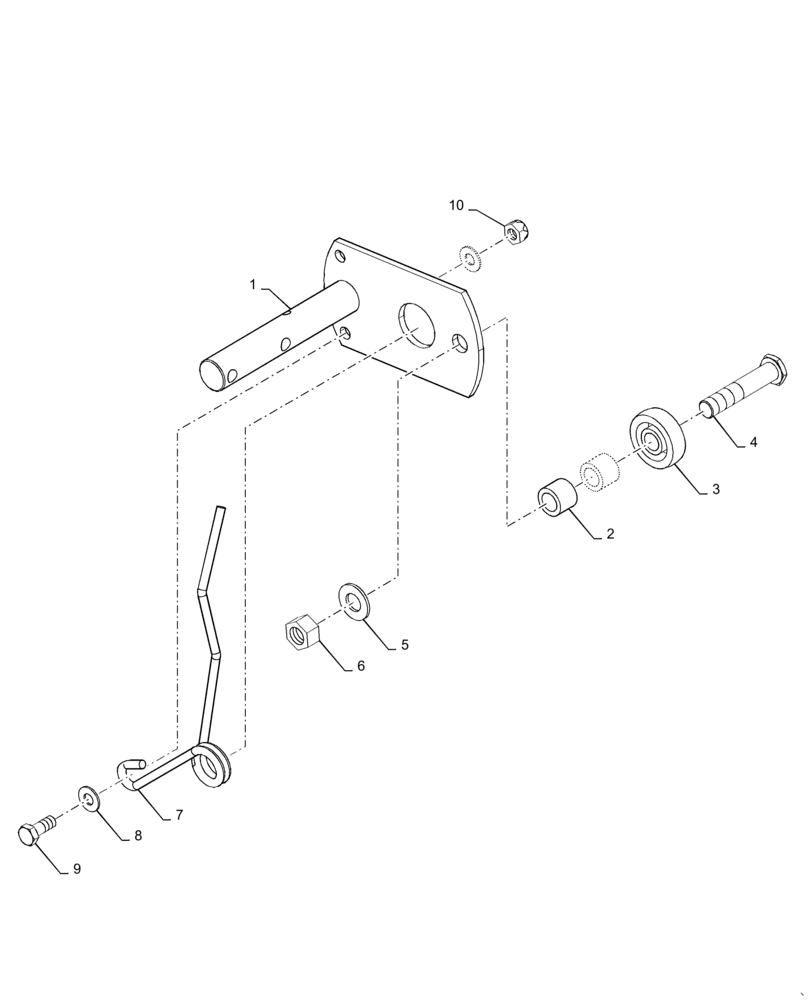

Запчасти Case IH 3162 (60.105.03[02]) - CRANK, ASSY, STEEL TINE, RH (60) - PRODUCT FEEDING

1

47608792

CRANKSHAFT

RH

1шт.

2

87574731

SPACER,16.66mm ID x 25.4mm OD x 20mm L

2шт.

3

165484

BALL BEARING,15.94mm ID x 50.8mm OD x 15mm W

1шт.

4

84134601

SPECIAL BOLT

1шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

6

408

NUT,5/8" - 18, Gr 5

1шт.

7

47608822

FINGER

Reel, RH

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.
