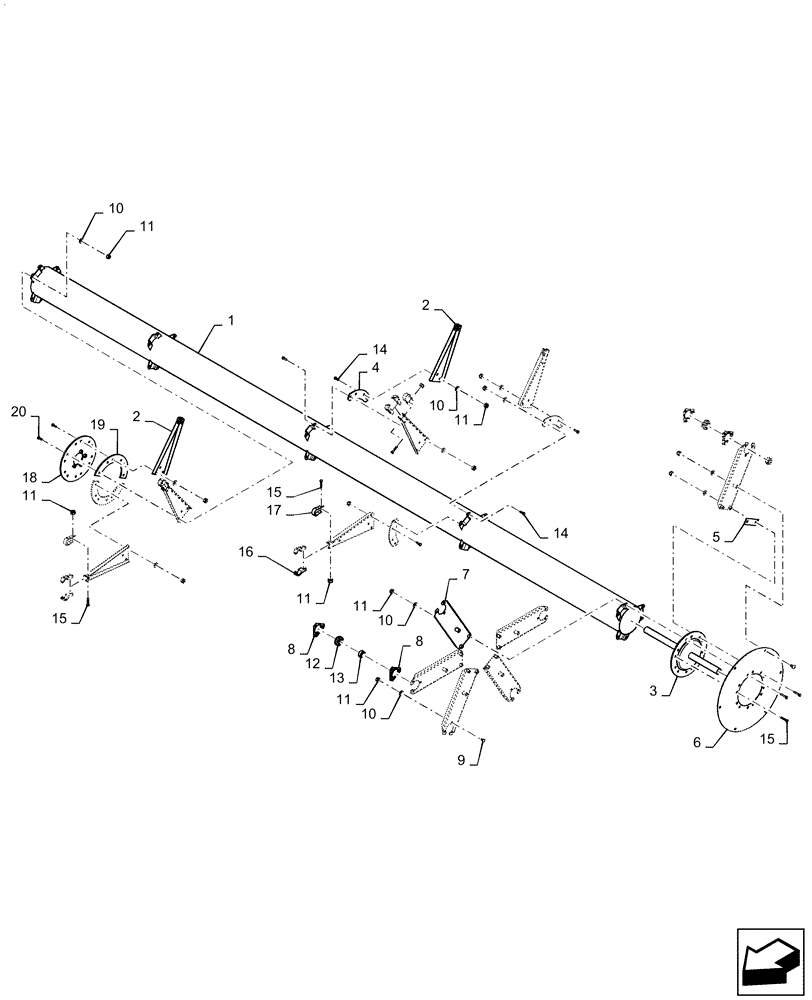

Запчасти Case IH 3162 (60.101.00[14]) - REEL, ASSY, LH, SINGLE CENTER CAM 45FT, BSN YEH040861 (60) - PRODUCT FEEDING

1

84415772

REEL

Center Tube

1шт.

2

9842291

ARM

Reel

30шт.

3

84544333

SHAFT

Outside End

1шт.

4

86609773

PLATE

Anchor

12шт.

5

84395517

SPACER

3шт.

6

84395529

DISC

Reel

1шт.

7

47512053

CHANNEL

6шт.

8

86548970

FLANGED BEARING

12шт.

9

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

18шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

96шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

126шт.

12

45882

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

6шт.

13

45876

COLLAR,28.6mm ID x 44.45mm OD x 16mm W

6шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

48шт.

15

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

48шт.

16

9842300

BEARING ASSY,=H1204&I1204

60шт.

17

9842301

STRAP

Bearing

30шт.

18

47426242

PLATE

1шт.

19

47376516

SPACER

2шт.

20

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

12шт.
