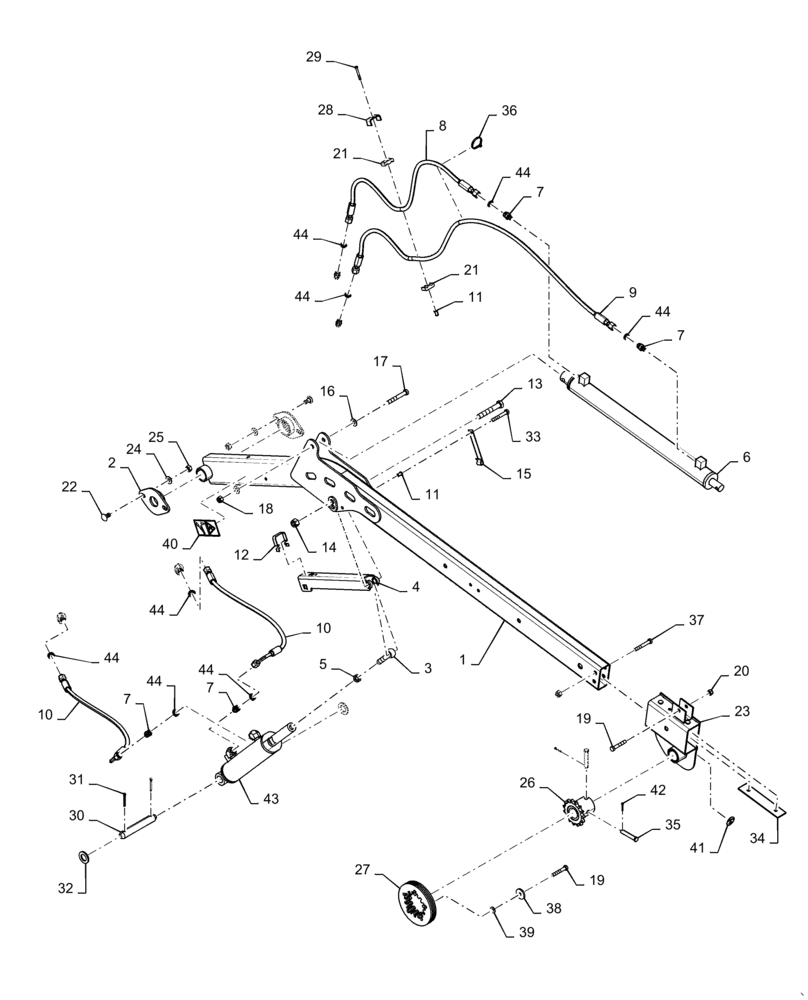

Запчасти Case IH 3162 (60.101.00[03]) - CENTER REEL ARM, 40 AND 45 FOOT HEADER, BSN YEH040000 (60) - PRODUCT FEEDING

1

47445586

ARM

1шт.

2

87645701

HINGE

2шт.

3

84577770

EYEBOLT

1шт.

4

84534785

SUPPORT

1шт.

5

10717511

THIN NUT,Thin, M16 x 2, Cl 04

1шт.

6

47499640

HYDRAULIC CYLINDER

1шт.

7

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

4шт.

8

84151314

HOSE,6.35mm ID x 1000mm L

Incl 44

1шт.

9

84250146

HOSE ASSY.,6.35mm ID x 1578mm L

Incl 44

1шт.

10

84132163

HYDRAULIC HOSE,6.35mm ID x 573mm L, SAE 100R17

Incl 44

2шт.

11

9833239

THREADED INSERT

2шт.

12

84242566

SPRING CLIP

LH

1шт.

13

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

1шт.

14

86000441

NUT,M16 x 2.0, Cl 8

1шт.

15

84072277

HOOK

1шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

17

86624981

BOLT,Hex, M12 x 85mm, Cl 8.8

1шт.

18

100038

NUT,M12 x 1.75, Cl 8

2шт.

19

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

21

430357

CLAMP

2шт.

22

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

23

84122740

BRACKET

1шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

25

9706685

NUT,M12 x 1.75, Cl 8

4шт.

26

47376551

SPROCKET

1шт.

27

47376537

PLATE

Coupler

1шт.

28

431941

SUPPORT

1шт.

29

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

30

84256351

PIN,25.4mm OD x 170mm L

1шт.

31

733-5040

COTTER PIN,M5 x 40

2шт.

32

140022

WASHER,26mm ID x 44mm OD x 4mm Thk

2шт.

33

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

34

87647472

SLIDE

1шт.

35

87675529

PIN,12.5mm OD x 69.85mm L

2шт.

36

86566989

CABLE TIE,208mm L

1шт.

37

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

38

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

5шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

40

84004735

CAUTION DECAL

2шт.

41

84334829

DECAL

1шт.

42

80755

COTTER PIN,1/8" OD x 1" L

2шт.

43

47499643

HYDRAULIC CYLINDER

1шт.

44

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl 8, 9, 10

8шт.
