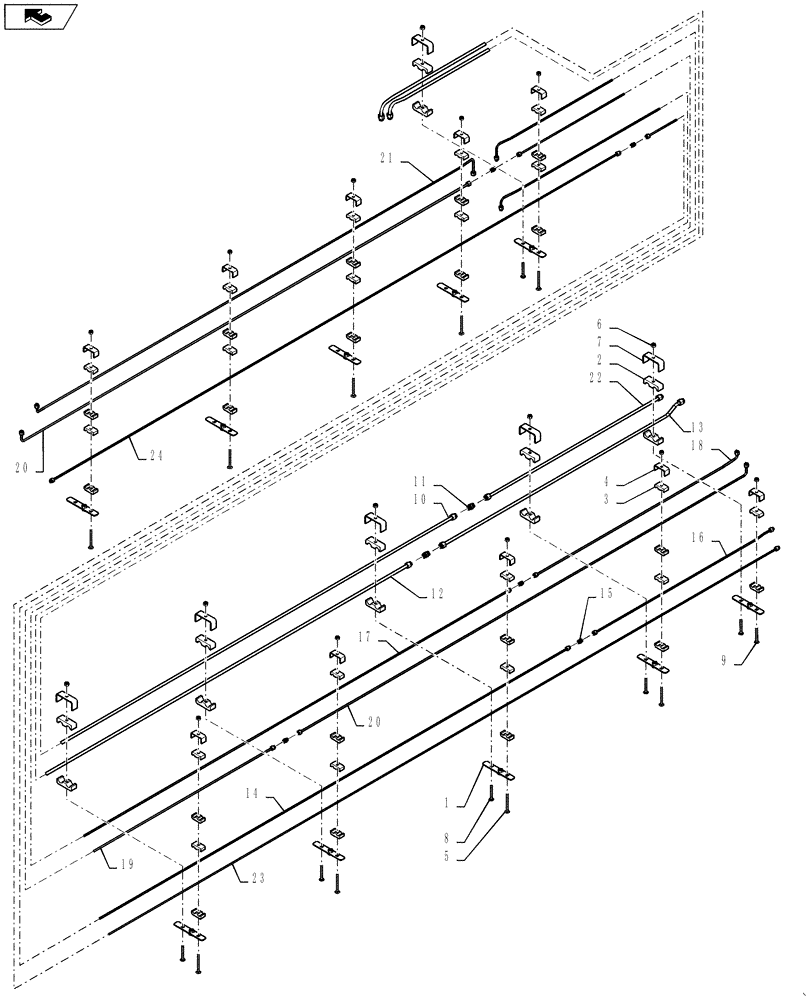

Запчасти Case IH 3162 (35.410.02) - STANDARD HYDRAULIC SYSTEM, 35 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

84140859

BRACKET

Hydraulic Tube Clamp

10шт.

2

430356

CLAMP

Hydraulic Tube

14шт.

3

430357

CLAMP

Hydraulic Tube

42шт.

4

431941

SUPPORT

Hydraulic Tube Clamp

21шт.

5

86512419

CARRIAGE BOLT,Sq Nk, M6 x 70mm, Cl 8.8

9шт.

5

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

6

353308

NUT,M6 x 1.0, Cl 8

18шт.

7

84814948

SUPPORT

Hydraulic Tube Clamp

7шт.

8

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

7шт.

9

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

10

84139174

HYD TUBE,16.00 mm OD

Top Beam

1шт.

11

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

12

84139203

HYD TUBE,16.00 mm OD

Top Beam

1шт.

13

84139188

HYD TUBE,16.00 mm OD x 2000.80, 40 mm L

Top Beam

1шт.

14

84139193

HYD TUBE,8.00 mm OD

Top Beam

1шт.

15

84431546

UNION,11/16"-16 ORFS

5шт.

16

84139191

HYD TUBE,16.00 mm OD x 2000.80, 40 mm L

Top Beam

1шт.

17

87654194

HYD TUBE,.375" OD

Top Beam

1шт.

18

84212138

HYD TUBE

Top Beam

1шт.

19

87654200

HYD TUBE,8 mm OD x 3017 mm L

Top Beam

1шт.

20

84221941

HYD TUBE

Top Beam

2шт.

21

84212135

HYD TUBE

Top Beam

1шт.

22

84139172

HYD TUBE,16.00 mm OD x 1481.30 mm L

Top Beam

1шт.

23

84139195

HYD TUBE,8.00 mm OD x 5989.80 mm L

Top Beam

1шт.

24

84138467

HYD TUBE,8 mm OD, 4689.2 mm Length

Top Beam

1шт.
