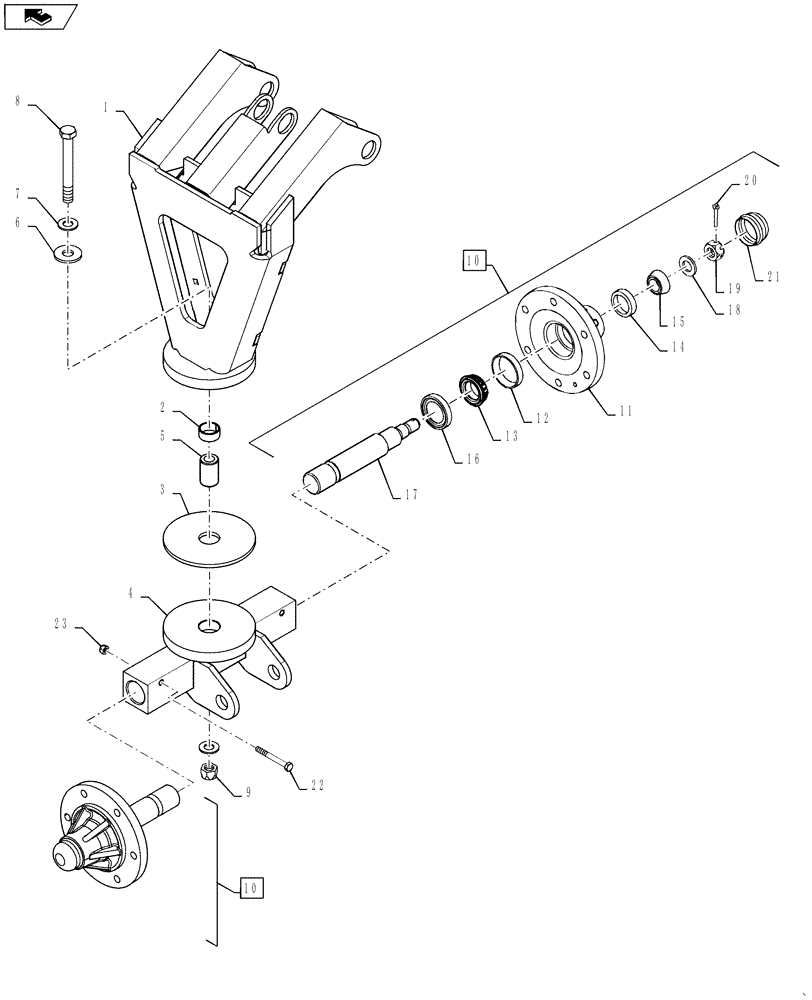

Запчасти Case IH 3162 (58.130.09) - FRONT AXLE, HEADER TRANSPORT (58) - ATTACHMENTS/HEADERS

1

84420907

AXLE

Front

1шт.

2

84374708

BUSHING,30mm ID x 34mm OD x 15mm L

1шт.

3

84420205

THRUST WASHER,34mm ID x 150mm OD x 6mm Thk

1шт.

4

84602922

AXLE

Front

1шт.

5

84422118

SPACER,17mm ID x 30mm OD x 46.1mm L

1шт.

6

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

1шт.

7

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

8

354360

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

1шт.

9

86000441

NUT,M16 x 2.0, Cl 8

1шт.

10

84592525

STUB AXLE/STEERING S

Incl 11 - 21

2шт.

11

86631051

HUB

Wheel

1шт.

12

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

13

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

13

84356153GV

BEARING

Value

1шт.

14

574810

BEARING CUP,45.26mm OD x 12.06mm W

1шт.

15

574809

BEARING CONE,21.98mm ID x 16.64mm W

1шт.

16

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

Oil

1шт.

17

84231684

SPINDLE

1шт.

18

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

1шт.

19

88886

SLOTTED NUT,3/4"-16

1шт.

20

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

21

26808

CAP

1шт.

22

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.
