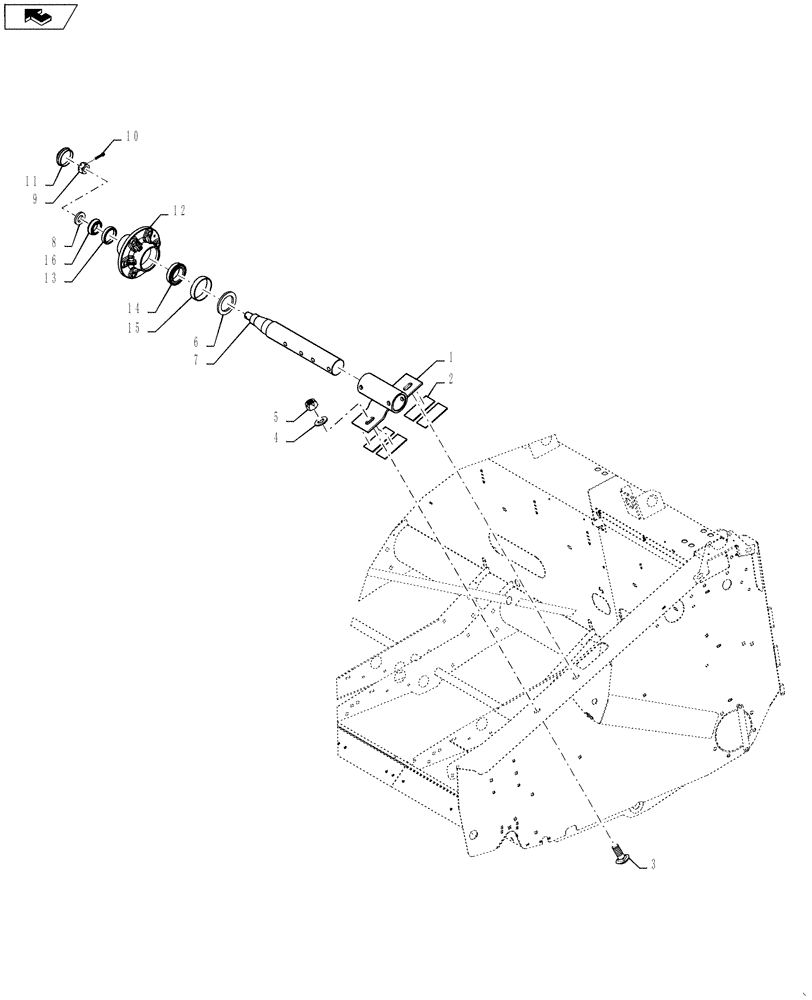

Запчасти Case IH 3162 (58.130.06) - REAR TRANSPORT HUB AND SUPPORT (58) - ATTACHMENTS/HEADERS

1

84476776

BRACKET

2шт.

2

89031

KIT

Felt

8шт.

3

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

4шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

5

86000441

NUT,M16 x 2.0, Cl 8

4шт.

6

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

Oil

1шт.

7

84229523

SPINDLE,430mm L

1шт.

8

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

1шт.

9

280172

SLOTTED NUT,7/8"-14

1шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

11

56868

COVER

1шт.

12

86632701

HUB

1шт.

13

175508

BEARING CUP,59.16mm OD x 11.94mm W

1шт.

14

199954

BEARING CONE,50mm ID x 21.5mm W

1шт.

15

199955

BEARING CUP,82mm OD x 17mm W

1шт.

16

175507

BEARING CONE,35 mm ID x 16.764 mm

1шт.
