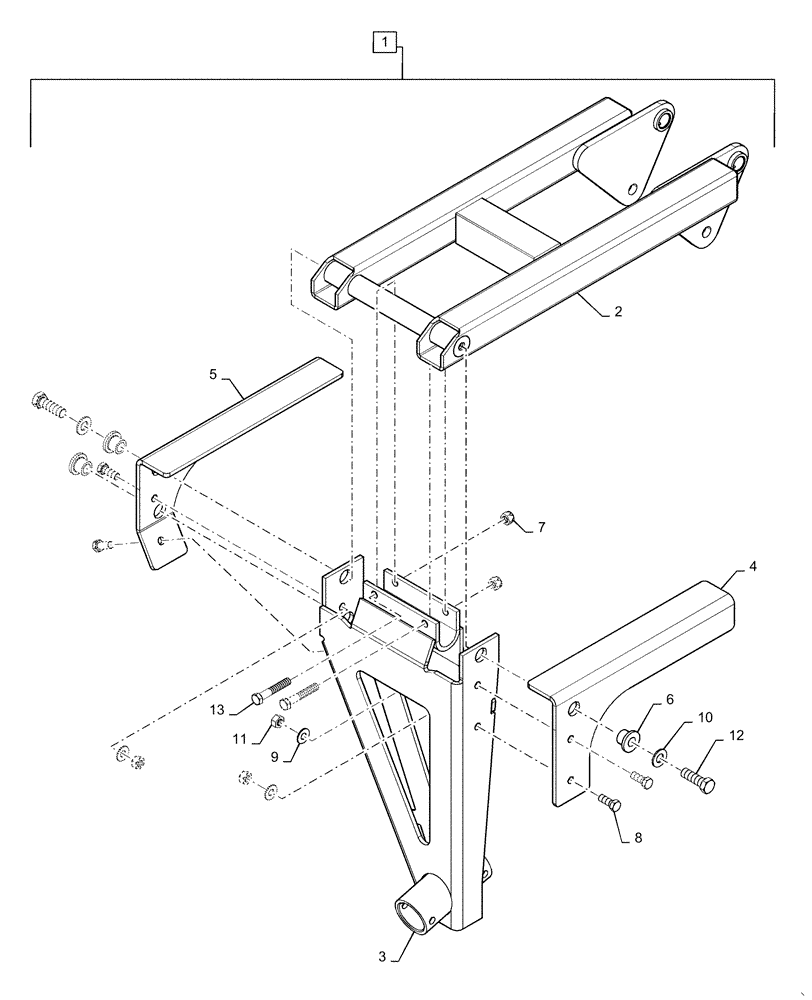

Запчасти Case IH 3162 (58.130.05[03]) - AXLE, ASSY (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

Axle Assy, Incl 2 - 13

1шт.

2

47459883

FRAME

Assy

1шт.

3

47489393

AXLE

1шт.

4

47489723

LOCK

Assy

1шт.

5

47489397

LOCK

Assy

1шт.

6

47461243

SPACER

3шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

11

9706685

NUT,M12 x 1.75, Cl 8

4шт.

12

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

13

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.
