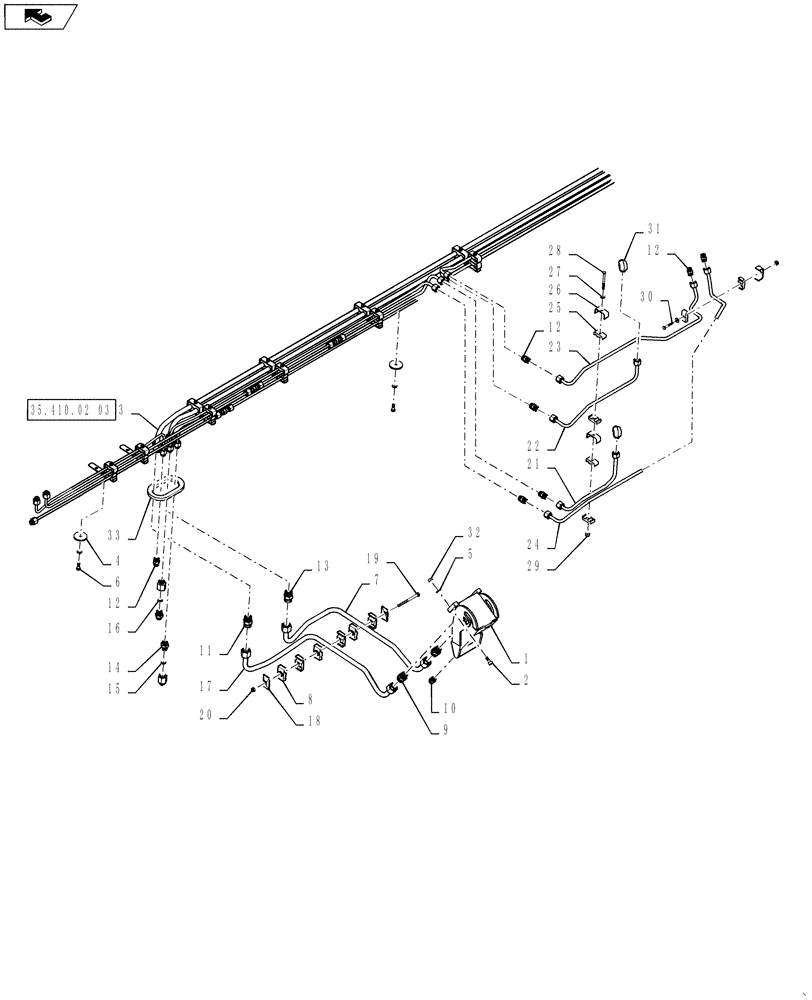

Запчасти Case IH 3162 (35.410.01) - HYDRAULIC, TOP BEAM, 40 AND 45 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

84434997

COUPLING

Quick

1шт.

2

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

NSS

NOT SOLD SEPARAT

HYDRAULIC TUBE BUNDLE

1шт.

4

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

6шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

7

84357413

HYD TUBE

Top Beam

1шт.

8

87000159

CLAMP

Hydraulic Tube

3шт.

9

87351379

HYD CONNECTOR

5/8 ORFS-ORB 1/2

2шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

11

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

12

84431546

UNION,11/16"-16 ORFS

7шт.

13

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

14

84062491

HYD CONNECTOR,11/16"-16 M ORFS x M18 x 1.5 Fem

2шт.

15

84206574

RESTRICTOR

Valve

1шт.

16

385686

ORIFICE

Valve

1шт.

17

84357407

HYD TUBE

Top Beam

1шт.

18

384870A1

PLATE

Hose Clamp Cover

2шт.

19

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

21

84201900

HYD TUBE

Top Beam

1шт.

22

84201863

HYD TUBE

Top Beam

1шт.

23

84208580

HYD TUBE

Top Beam

1шт.

24

84208582

HYD TUBE

Top Beam

1шт.

25

430357

CLAMP

6шт.

26

431941

SUPPORT

3шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

28

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

29

353308

NUT,M6 x 1.0, Cl 8

2шт.

30

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

31

87564749

ELBOW,90 Degree, 11/16"-16, ORFS

2шт.

32

43362

NUT,M8 x 1.25, Cl 10

4шт.

33

9850033

SEAL

600mm

1шт.
