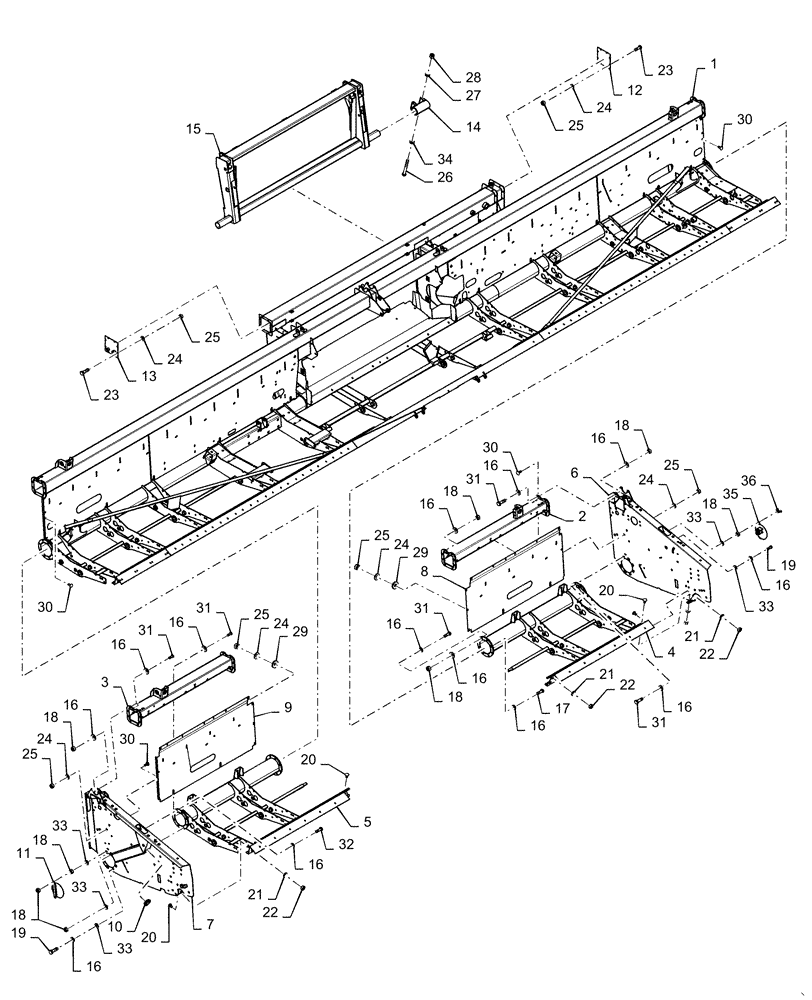

Запчасти Case IH 3162 (58.130.04[05]) - FRAME ASSEMBLY, 45 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

84385513

FRAME

Assy, Serial Range: -YEH040861

1шт.

1

47693317

FRAME

Assy, Start Serial: YEH050000

1шт.

2

84421753

CHANNEL

Left Hand

1шт.

3

84421755

CHANNEL

Right Hand

1шт.

4

84421761

CHANNEL

Left Hand

1шт.

5

84421763

CHANNEL

Right Hand

1шт.

6

84389076

SHEET

Left Hand

1шт.

7

47476842

SHEET

Right Hand

1шт.

8

84570239

SHEET

Left Hand

1шт.

9

84570236

SHEET

Right Hand

1шт.

10

129959

GROMMET

2шт.

11

84295960

COVER

COVER DARK GREY

2шт.

12

84354252

COVER

COVER DARK GREY

1шт.

13

84475740

COVER ASSY

COVER RED

1шт.

14

47508355

HUB

HUB ASSEMBLY

2шт.

15

84389246

FRAME

1шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

104шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

18

337475

NUT,M12, Cl 10

50шт.

19

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

20

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

12шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

22

100016

NUT,M10 x 1.5, Cl 8

12шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

16шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

38шт.

25

9706690

NUT,M8 x 1.25, Cl 8

38шт.

26

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

4шт.

27

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

28

86000441

NUT,M16 x 2.0, Cl 8

4шт.

29

412328

WASHER

M8

6шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

22шт.

31

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

46шт.

32

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

33

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

16шт.

34

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

35

84602517

COVER

1шт.

36

308369

WING NUT

2шт.

37

85801249

LEVEL GAUGE

Frame

1шт.

38

47584875

FLOOR

Center, Australia Only

1шт.
