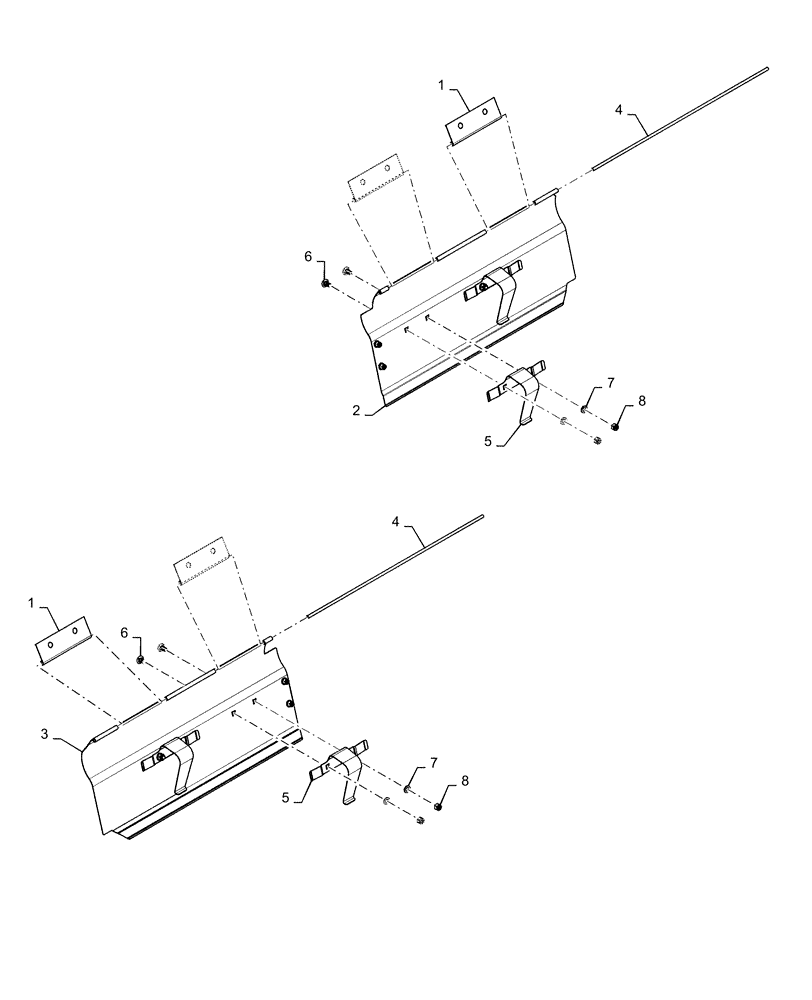

Запчасти Case IH 3162 (58.130.03[02]) - FLOOR, ASSY, RH/LH CENTER KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

87728775

HALF-HINGE

Half Hinge

2шт.

2

47554388

FLOOR

Assy, LH

1шт.

3

47554389

FLOOR

Assy, RH

1шт.

4

84373868

ROD

1шт.

5

87496269

SPRING

2шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.
