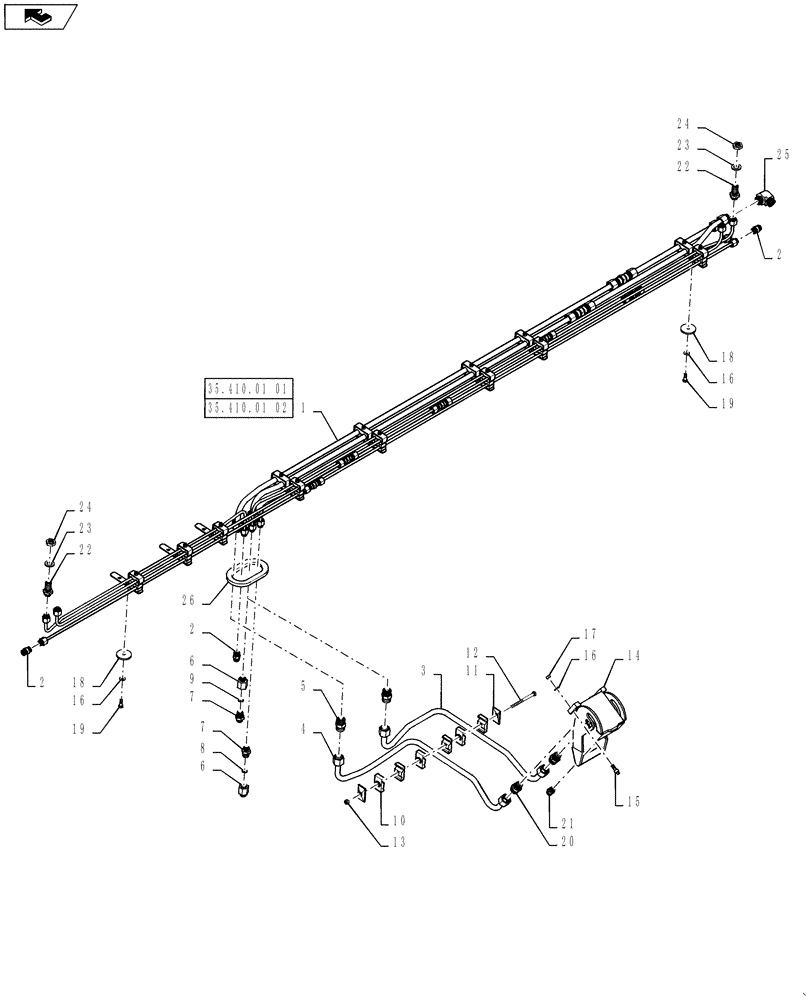

Запчасти Case IH 3162 (35.410.01) - HYDRAULIC, TOP BEAM, 30 AND 35 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

HYDRAULIC TUBE BUNDLE

1шт.

2

84431546

UNION,11/16"-16 ORFS

4шт.

3

84357413

HYD TUBE

Top Beam

1шт.

4

84357407

HYD TUBE

Top Beam

1шт.

5

84431473

HYD CONNECTOR,1"-14 ORFS

2шт.

6

84062491

HYD CONNECTOR,11/16"-16 M ORFS x M18 x 1.5 Fem

2шт.

7

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

8

84206574

RESTRICTOR

Valve

1шт.

9

385686

ORIFICE

Valve

1шт.

10

87000159

CLAMP

Hydraulic Tube

3шт.

11

384870A1

PLATE

Hose Clamp Cover

2шт.

12

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

14

84434997

COUPLING

Quick

1шт.

15

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

43362

NUT,M8 x 1.25, Cl 10

4шт.

18

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

87351379

HYD CONNECTOR

5/8 ORFS-ORB 1/2

2шт.

21

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

22

86978770

UNION,11/16"-6, ORFS

4шт.

23

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

24

87010704

BHD LOCK NUT,11/16"-16

4шт.

25

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

ORFS, 90D Union, 16mm

2шт.

26

9850033

SEAL

300mm

1шт.
