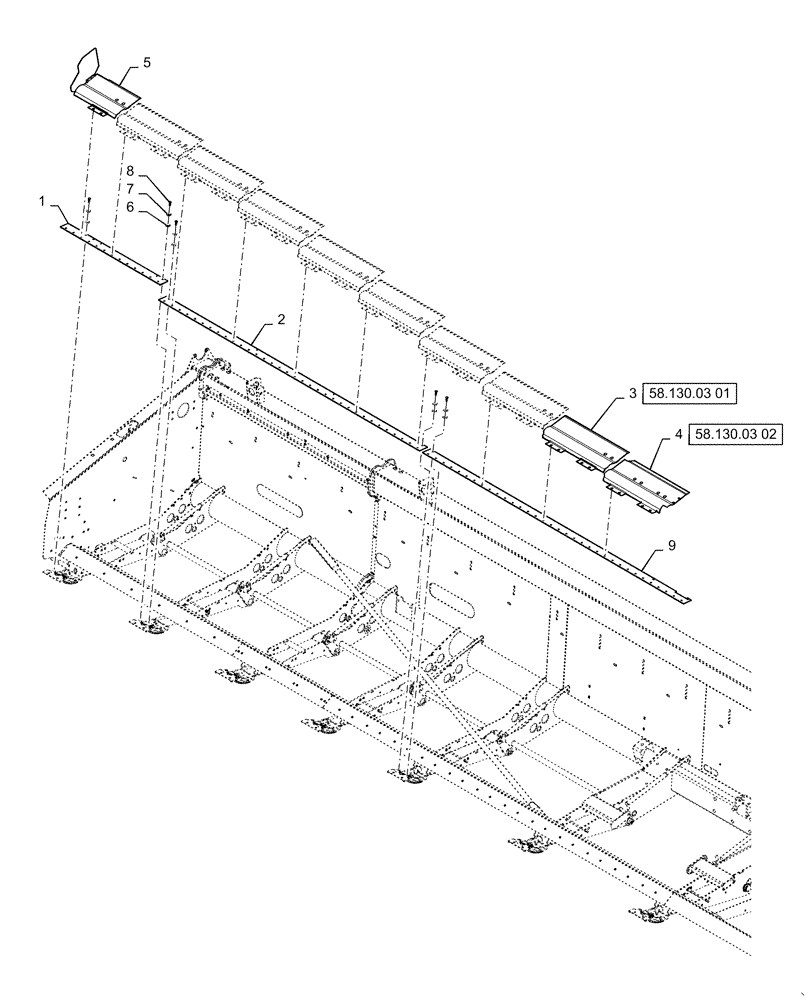

Запчасти Case IH 3162 (58.130.02[02]) - FLOOR, ASSY, 40FT CENTER KNIFE DRIVE, RH (58) - ATTACHMENTS/HEADERS

1

47403708

SERVICE KIT

40 ft

1шт.

2

84126953

BAR

Inside

1шт.

3

NSS

NOT SOLD SEPARAT

Floor Assy, RH

8шт.

4

NSS

NOT SOLD SEPARAT

Floor Assy, RH, Center Knife Drive

1шт.

5

87496275

FLOOR

Assy, RH, Outer

1шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

87778873

BOLT,Hex, M10 x 25, 8.8, Full Thd

6шт.

9

47403718

CUTTERBAR

Center, RH

1шт.
