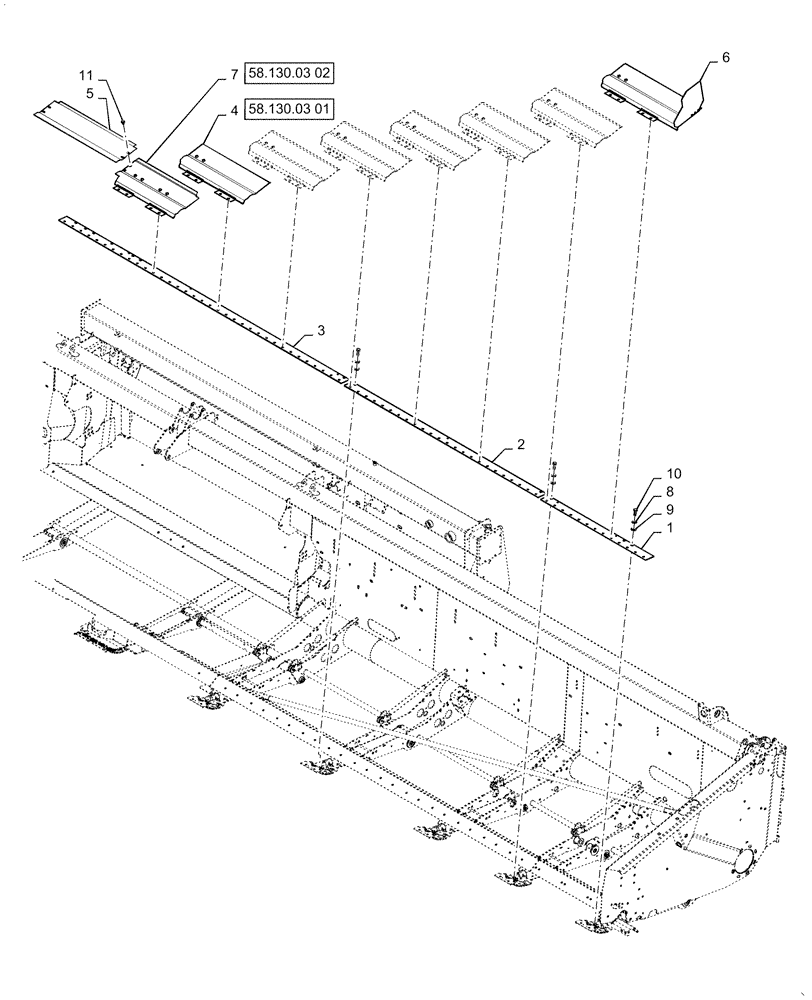

Запчасти Case IH 3162 (58.130.02[01]) - FLOOR, ASSY, 35FT CENTER KNIFE DRIVE, LH (58) - ATTACHMENTS/HEADERS

1

47403708

SERVICE KIT

35FT

1шт.

2

84207089

CUTTERBAR

LH

1шт.

3

84359388

CUTTERBAR

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Floor Assy, LH

6шт.

5

47552394

FLOOR

Center

1шт.

6

84209638

FLOOR

Assy, LH, Outer

1шт.

7

NSS

NOT SOLD SEPARAT

Floor Assy, LH, Center Knife Drive

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

10

87778873

BOLT,Hex, M10 x 25, 8.8, Full Thd

6шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.
