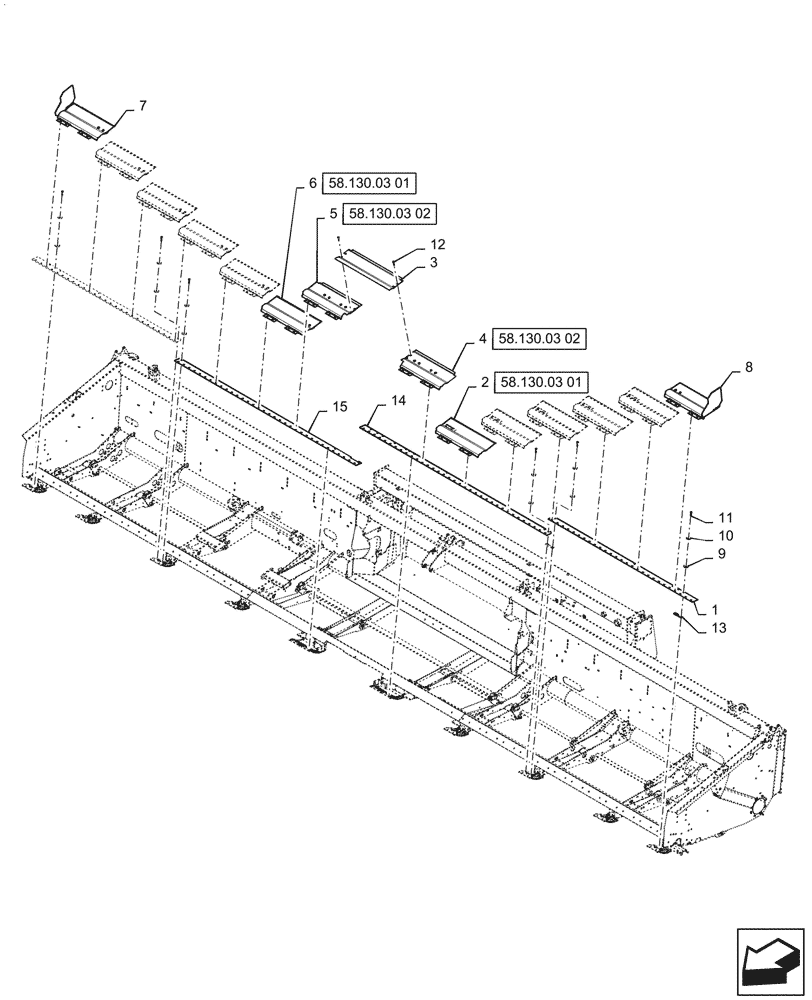

Запчасти Case IH 3162 (58.130.02[01]) - FLOOR, ASSY, 30FT CENTER KNIFE DRIVE, LH AND RH (58) - ATTACHMENTS/HEADERS

1

47403714

SERVICE KIT

30 FT

1шт.

2

NSS

NOT SOLD SEPARAT

LH Floor Assy

5шт.

3

47552394

FLOOR

Center

1шт.

4

NSS

NOT SOLD SEPARAT

LH Floor Assy, CKD

1шт.

5

NSS

NOT SOLD SEPARAT

RH Floor Assy, CKD

1шт.

6

NSS

NOT SOLD SEPARAT

RH Floor

5шт.

7

84373524

FLOOR

RH Floor Assy, Outter 30FT

1шт.

8

84373522

FLOOR

LH Floor Assy, Outter 30 FT

1шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

11

87778873

BOLT,Hex, M10 x 25, 8.8, Full Thd

8шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

13

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard

2шт.

14

84359388

CUTTERBAR

RH

1шт.

15

47403718

CUTTERBAR

RH Center

1шт.
