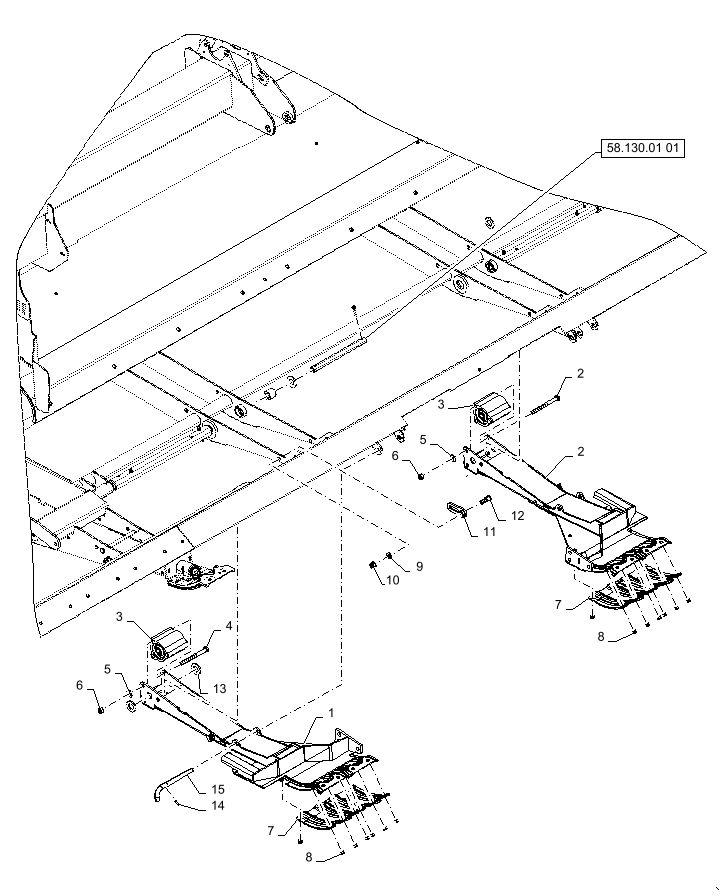

Запчасти Case IH 3162 (58.130.01[05]) - ARM, ASSY, CENTER RH/LH, ASN - YEH050000 (58) - ATTACHMENTS/HEADERS

1

48080999

ARM

Center, RH

1шт.

2

47691683

ARM

Center, LH

1шт.

3

84235792

TENSION SPRING,19.2mm ID x 80.5mm OD x 101.22mm L

1шт.

4

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

3шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

6

337475

NUT,M12, Cl 10

3шт.

7

377580A1

SKID/SHOE

Polyskid Single Skid

2шт.

8

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

10шт.

9

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

12шт.

10

412672

NUT,Hex, M12 x 1.75, Cl 10

12шт.

11

47903170

ARM

2шт.

12

84349076

STEP BOLT

12шт.

13

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

36шт.

14

738-3422

PIN,M4 x 22, Coiled

4шт.

15

47799023

PIN

2шт.
