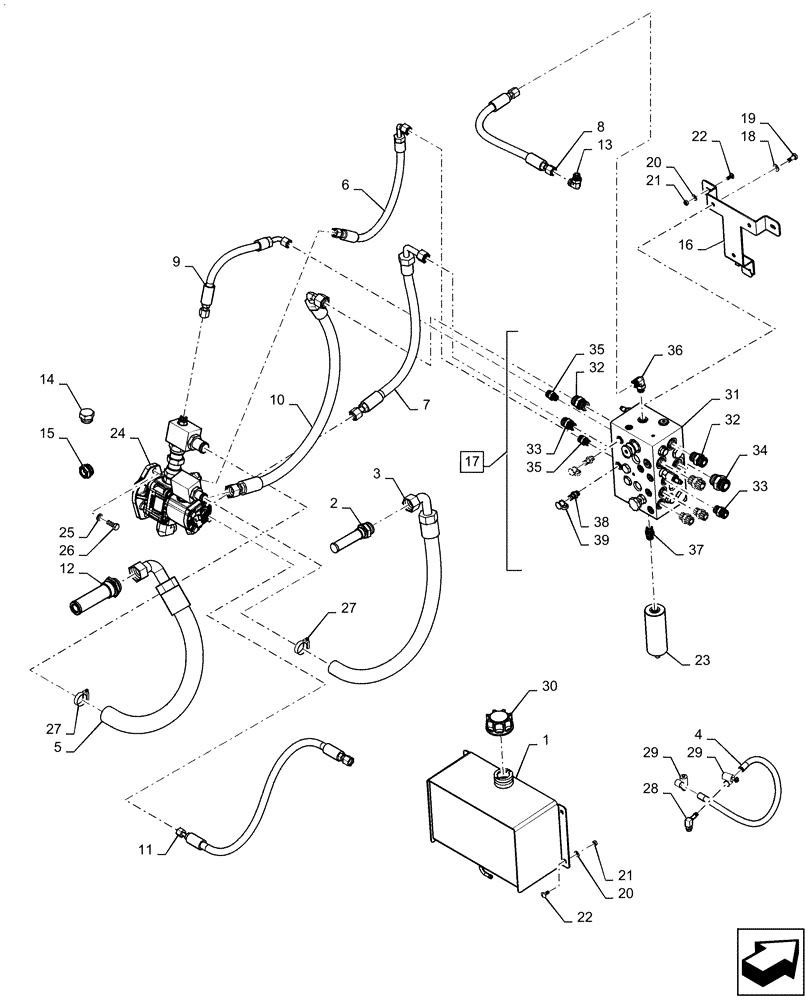

Запчасти Case IH 3162 (35.410.01[01]) - HYDRAULIC SYSTEM, DRAPER PUMP (35) - HYDRAULIC SYSTEMS

1

84333173

RESERVOIR,13.6L

Hydraulic Oil

1шт.

2

87360480

OIL COOLER FILTER

1шт.

3

84387783

HYDRAULIC HOSE,25.4mm ID x 790mm L, SAE 100R4

1шт.

4

84387785

HOSE ASSY.,12.7mm ID x 710mm L, SAE 100R6

1шт.

5

84329685

HYDRAULIC HOSE,31.75mm ID x 775mm L, SAE 100R4

1шт.

6

84307003

HYDRAULIC HOSE,12.7mm ID x 567mm L, SAE 100R16

1шт.

7

84307014

HYDRAULIC HOSE,15.88mm ID x 690mm L, SAE 100R16

1шт.

8

84387784

HYDRAULIC HOSE,12.7mm ID x 571mm L, SAE 100R3

1шт.

9

84307010

HYDRAULIC HOSE,12.7mm ID x 400mm L, SAE 100R16

1шт.

10

84306989

HYDRAULIC HOSE,19.05mm ID x 937mm L, SAE 100R16

1шт.

11

47447091

HYDRAULIC HOSE

1шт.

12

87657274

STRAINER ASSY.

1шт.

13

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

14

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

15

85801249

LEVEL GAUGE

1шт.

16

84299467

BRACKET

1шт.

17

NSS

NOT SOLD SEPARAT

Hydraulic, Valve Manifold w/Fittings, Incl 31 - 39

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

21

43362

NUT,M8 x 1.25, Cl 10

6шт.

22

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

23

86974820

ACCUMULATOR

1шт.

24

84307019

HYDRAULIC PUMP

1шт.

25

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

26

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

27

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

2шт.

28

86625228

HYD CONNECTOR,90°, 3/8" Hose x 9/16-18

1шт.

29

244358

HOSE CLIP,0.44" - 0.78"

2шт.

30

87325304

CAP

1шт.

31

87485435

MANIFOLD

1шт.

32

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

3шт.

33

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

4шт.

34

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

35

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

2шт.

36

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

37

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

1шт.

38

84320565

COUPLING,M14 x 1.5

2шт.

39

86502604

DUST CAP

2шт.
