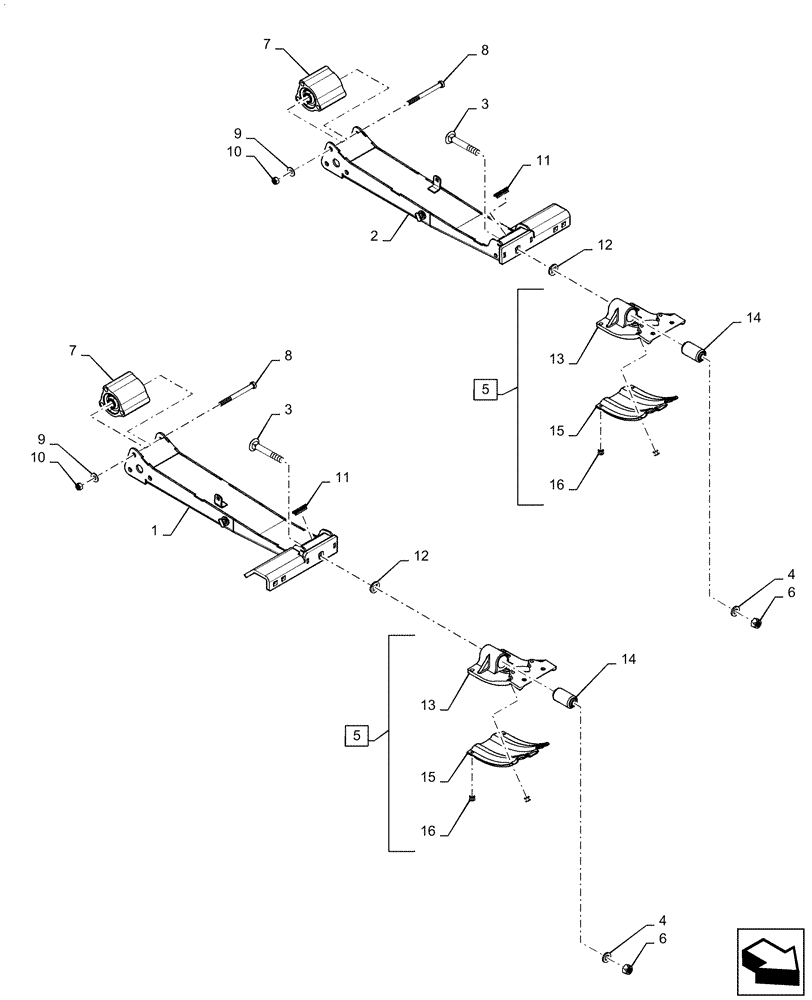

Запчасти Case IH 3162 (58.130.01[02]) - ARM, ASSY, RH/LH (58) - ATTACHMENTS/HEADERS

1

47478558

ARM

Assy, RH

1шт.

2

47478556

ARM

Assy, LH

1шт.

3

84569270

CARRIAGE BOLT,Reg Sq Nk, M16 x 2 x 110mm, Cl 10.9

1шт.

4

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Skid Shoe Assy, Incl 13 - 16

1шт.

6

86512555

NUT,M16 x 2, Cl 10

1шт.

7

84126918

TORSION SPRING,19.2mm ID x 80.5mm OD x 101.22mm L

1шт.

8

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

3шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

10

337475

NUT,M12, Cl 10

3шт.

11

87011911

PLUG,1.45", Plastic

1шт.

12

84590649

SQ HOLE WASHER,17mm ID x 34mm OD x 4.25mm Thk

1шт.

13

84173609

SKID/SHOE

1шт.

14

87538599

BUSHING,16mm ID x 38.2mm OD x 73mm L

Cleaning System

1шт.

15

377580A1

SKID/SHOE

Polyskid Single Skid

1шт.

16

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

5шт.
