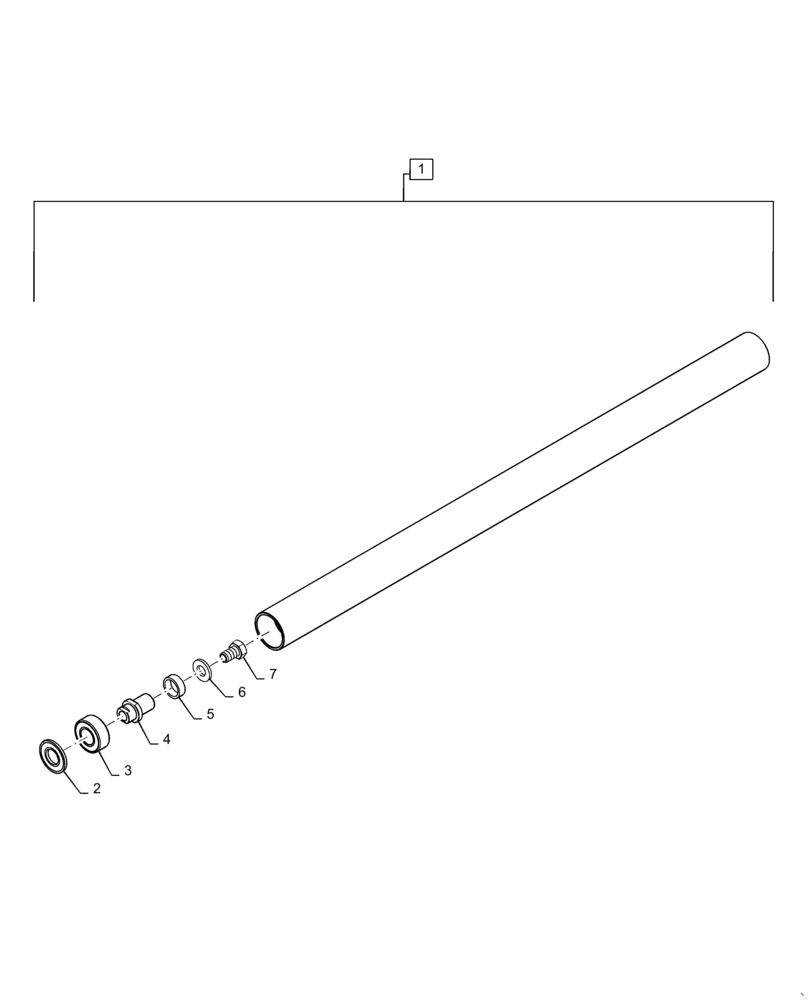

Запчасти Case IH 3162 (58.115.06) - ROLLER, IDLER (58) - ATTACHMENTS/HEADERS

1

87701210

ROLLER,60.33mm OD x 996mm L

Idler, Incl 2 - 7

1шт.

2

87470511

SEAL,25mm ID x 52mm OD

1шт.

3

87493745

BALL BEARING,25mm ID x 52mm OD x 20.64mm W

1шт.

4

87470510

PIN,35mm OD x 53mm L

1шт.

5

144929

SPACER

1шт.

6

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

1шт.

7

15980321

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.
