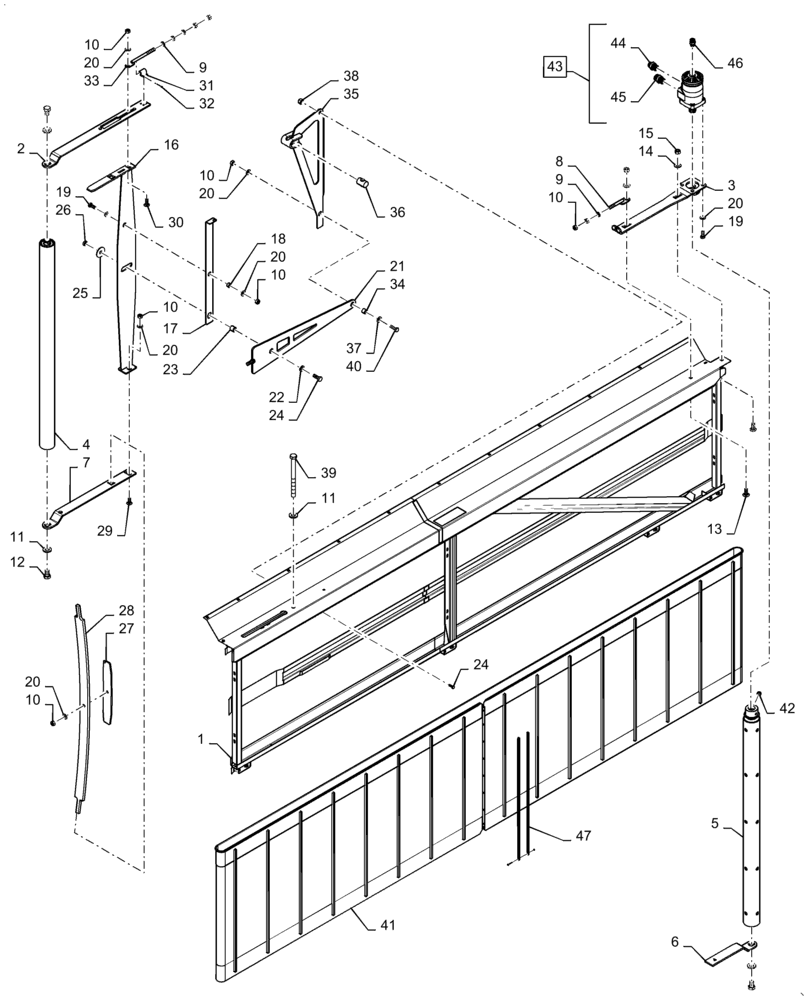

Запчасти Case IH 3162 (58.115.04) - TENSIONER, ASSY, LH, 40FT (58) - ATTACHMENTS/HEADERS

1

87491415

CONVEYOR

Assy, LH, 40FT

1шт.

2

87477203

ARM

Assy, Rear

1шт.

3

87478446

ARM

Assy, RH

1шт.

4

87701210

ROLLER,60.33mm OD x 996mm L

Assy, Idler

1шт.

5

84476056

ROLLER,66.3mm OD x 1051mm L

Assy, Drive

1шт.

6

47479043

ARM

LH

1шт.

7

87478432

ARM

RH

1шт.

8

87473099

ADJUSTER

Drive Roller

1шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

5шт.

10

100016

NUT,M10 x 1.5, Cl 8

9шт.

11

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

12

15980321

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

3шт.

13

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

87478450

STABILIZER

Assy, LH

1шт.

17

87478996

INDICATOR

Assy

1шт.

18

626698

SPACER

1шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

21

87478451

SUPPORT

Assy

1шт.

22

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

23

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

1шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

25

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

1шт.

26

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

27

87491665

LEAF SPRING

Assy, Short

1шт.

28

87491663

LEAF SPRING

Assy, Long

1шт.

29

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

30

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

31

87477205

BRACKET

Assy,

1шт.

32

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

33

87473100

ROD

Threaded

1шт.

34

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

1шт.

35

47422732

BELLCRANK

LH

1шт.

36

87477200

NUT,Special

1шт.

37

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

38

100038

NUT,M12 x 1.75, Cl 8

1шт.

39

9814566

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8, Full Thd

1шт.

40

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

41

84487818

BELT

Assy, 40FT

1шт.

42

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

2шт.

43

84393903

HYDRAULIC MOTOR,41CC

Also Order 44 - 46

1шт.

44

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

1шт.

45

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

46

87305436

HYD CONNECTOR

1шт.

47

47371025

SLAT

Kit

1шт.
